1200 Watt RV Solar Kit
1200 Watt RV Solar Kit – If you are an avid traveler or someone who enjoys camping, investing in a 1200 Watt RV solar kit can greatly enhance your experience. This power setup not only provides you with renewable energy but also allows for a more carefree off-grid lifestyle. In particular, a 1200 watt kit usually consists of a 200 watt monocrystalline solar panel, a 60a MPPT solar charge controller, and mounting Z brackets.
This 24V 1200W kit contains 6 high-efficiency 200W Monocrystalline panels with 18 busbars and our 60A MPPT controller. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer!

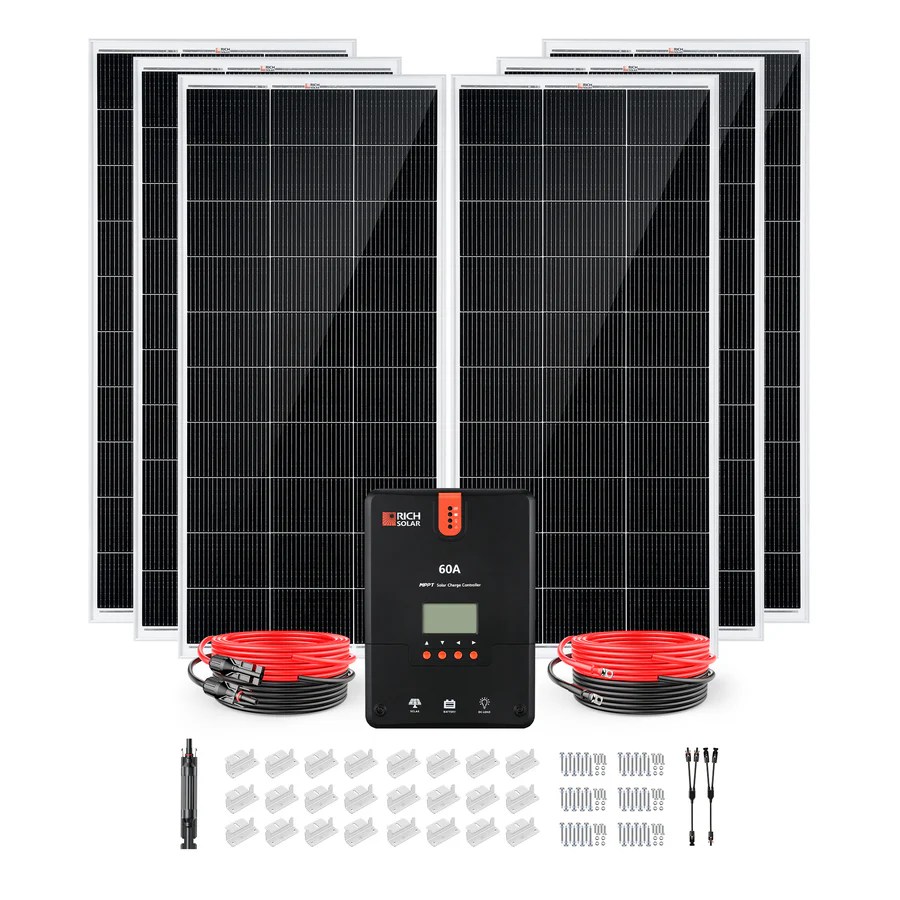

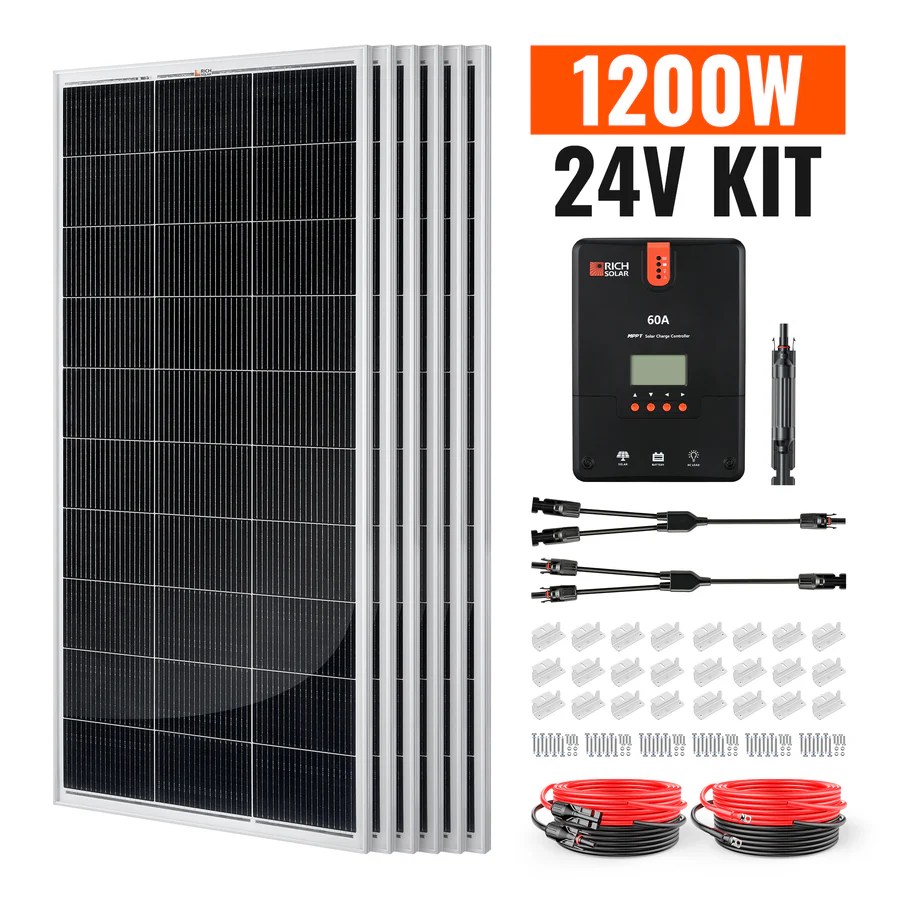

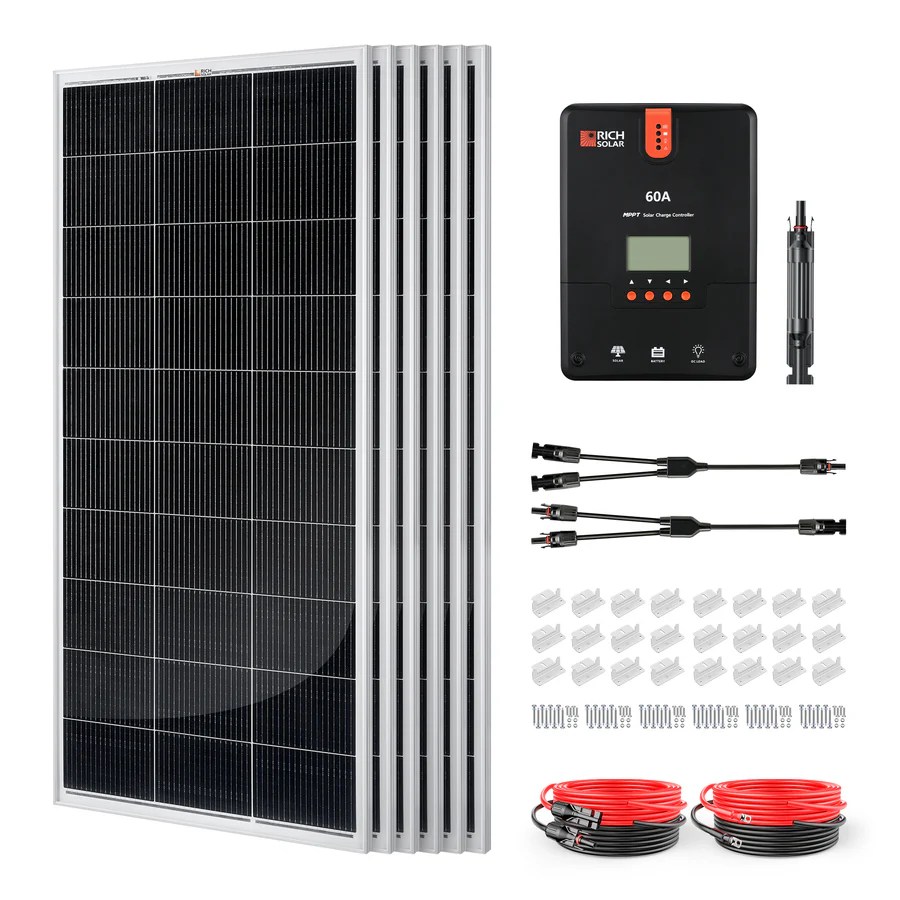

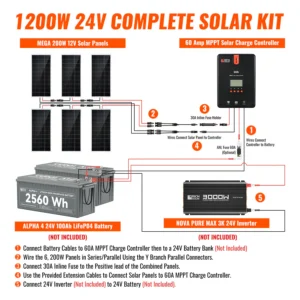

1200 Watt RV Solar Kit Includes:
- 6 x 200 Watt Monocrystalline Solar Panel (RS-M200)
- 1 x 60A MPPT Solar Charge Controller (RS-MPPT60)
- 1 x 20′ #10 Gauge Solar Cable (Red), connects the solar panel to the controller (RS-20101)
- 1 x 20′ #10 Gauge Solar Cable (Black), connects the solar panel to the controller (RS-20101)
- 1 x 10′ #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
- 1 x 10′ #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
- 6 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
- 1 x 30A Inline Fuse Holder with Fuse (RS-SC30F)
- 1 x Y Branch Parallel Adapters (RS-Y2)
Why Choose Monocrystalline Solar Panels?
Among the components of a 1200 watt RV solar kit, the 200 watt monocrystalline solar panel stands out for its efficiency and space-saving design. These panels are known for their high power output and performance even in low-light conditions. By maximizing power collection, they enable RV users to get the most out of their solar energy production.
MEGA 200 Watt Solar Panel Features:
- Generates 10.9 amps of power, charges 12-volt batteries, 3′ quick connect cables with connectors, and works in series or parallel.
- Excellent low-light performance even on early mornings, evenings, and cloudy days.
- Built with strong, high-transmission “anti-reflective” coated tempered glass and an anodized aluminum frame.
- Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
- 25-year limited warranty for power output; 10-year workmanship warranty.
Features of the 60A MPPT Solar Charge Controller
The heart of your 1200 watt RV solar kit is the 60A MPPT solar charge controller. This device optimizes charging by increasing the efficiency of energy transfer from the panels to the battery. With maximum power point tracking (MPPT), it ensures that your battery is charged effectively, prolonging its lifespan and keeping your devices powered for longer.
- Automatically detects 12V/24V/36V/48V DC system voltages.
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.
- Die-cast aluminum design allows for efficient heat dissipation.
- RS232 port for communicating with the BT-1 Bluetooth module.
When you venture off the beaten path, having a dependable source of energy can make all the difference. A 1200 watt RV solar kit, complete with its robust components like the 200 watt monocrystalline solar panel and the advanced 60A MPPT solar charge controller, represents an excellent investment for any RV enthusiast. With the mounting Z brackets, installation becomes easier than ever, allowing you to start harnessing solar power quickly.
