150 Watt Solar Panel | Lightweight 12V Off-Grid Solar Panel for RVs, Cabins, Boats | 25-Year Output Warranty | UL Certified
Powering Your Adventures with Sustainable Energy
150 Watt Solar Panel – Discover the versatility and efficiency of the 150 Watt Solar Panel. Perfectly designed for off-grid applications, this lightweight solar panel is the ideal power source for RVs, cabins, boats, and other outdoor setups. With a focus on durability and high performance, it ensures steady energy output without compromising on convenience or portability.
150 Watt Solar Panel Features
Combining 24.8% high efficiency and a compact design, the MEGA 150 solar panel provides optimized solar energy for any off-grid application. Built with lightweight aluminum anodized frames and an 18-busbar solar cell configuration for durability and high efficiency for optimized performance.
- 18 busbar solar cell configuration
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug-and-play junction box
- Industry-standard quick-connect cables work in series or parallel
- Certified to withstand challenging environmental conditions
- Excellent low-light performance on cloudy days, mornings, and evenings
Premium Design for Maximum Efficiency
Crafted with precision, the panel features UL-certified materials, including high transmission AR (anti-reflective) coated tempered glass. This innovative design maximizes sunlight absorption and minimizes reflection, boosting energy production and efficiency. Despite its lightweight nature, this solar panel is built to withstand various weather conditions, offering reliable performance even in challenging environments.
150 Watt Solar Panel Specifications
- Model: RS-M150
- Maximum Power (Pmax): 150 W
- Maximum Power Voltage (Vmp): 17.5V
- Maximum Power Current (Imp): 8.57A
- Open Circuit Voltage (Voc): 21.8V
- Short Circuit Current (Isc): 8.94A
- Maximum System Voltage (Vmax): 1000VDC
- Maximum Series Fuse Rating: 15A
- Temperature Range: -40 ~ +185°F
- Weight: 18.1 lb

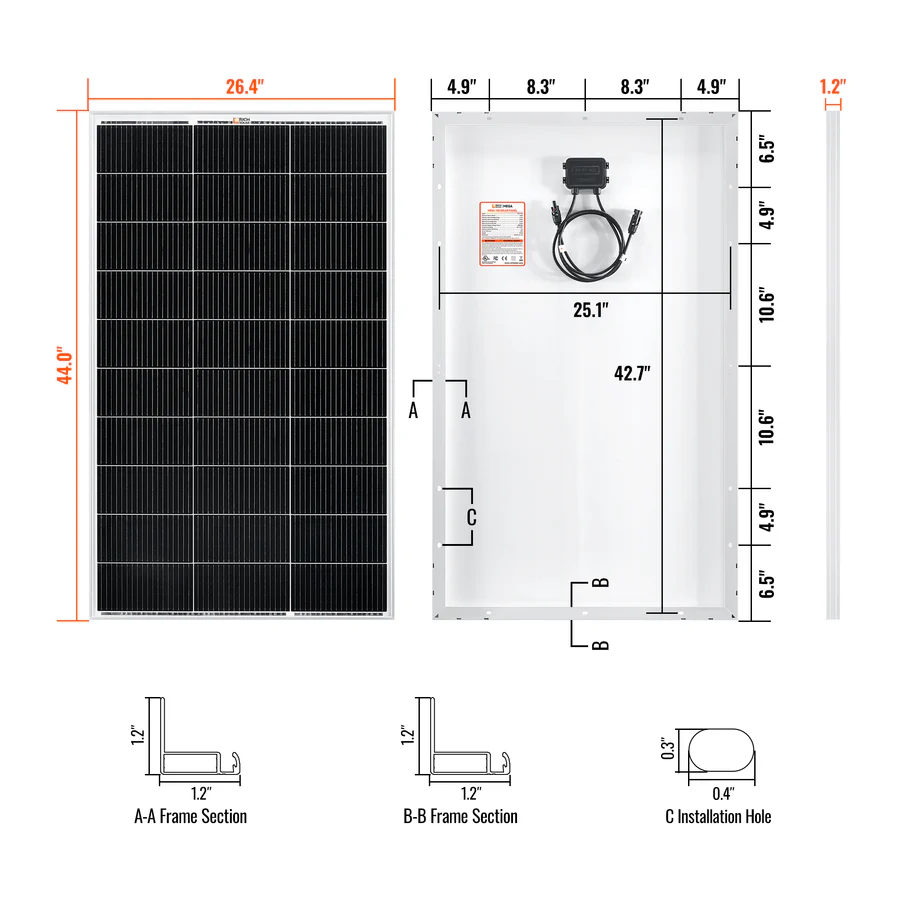

- Dimensions: 44.0 x 26.4 x 1.2 in
1. Built-in Components
- Panel leads (pair): 3 feet each
- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box
2. Installation
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
25-Year Output Warranty for Peace of Mind
Invest in a solar solution backed by an industry-leading 25-year output warranty. Built to last, this panel combines durability with long-term reliability, making it a smart investment for anyone embracing off-the-grid living. Whether you’re powering your RV during road trips, lighting up a cabin in the woods, or keeping a boat’s essentials running, this solar panel offers the dependable energy you need.
Say goodbye to heavy and cumbersome power sources—this 150 Watt Solar Panel is lightweight, easy to install, and fits perfectly into various setups without taking up unnecessary space. It’s a sustainable choice that balances performance, portability, and affordability.
FAQs About a 150 Watt Solar Panel
- How do I know if the panel is producing voltage/energy?
Use a multimeter to accurately read the panel’s voltage. Under full sun, the multimeter should read 20-22V DC. - Do I have to disconnect the panels from the battery when I drive my RV or while I am recharging my battery by other means?
The solar panels are designed to permanently connect to your battery, so you don’t need to ever disconnect them when driving your RV or charging your battery from other sources. - What can be done if the wires are too short?
If your wires are too short and you can’t readjust the distance between the hardware, you will need to buy longer cables. Please only purchase additional cables through the RICH SOLAR store. - What is the difference between monocrystalline and polycrystalline?
Monocrystalline solar panels use a single silicon crystal during production, whereas polycrystalline solar panels use multiple fragmented silicon crystals. Monocrystalline panels are more expensive but are more efficient. They also appear black and use less space. Polycrystalline panels are less expensive but are less efficient. They appear blue and require a little more space. The size difference doesn’t take away from their energy output. A 100W monocrystalline panel will produce the same amount of energy as a 100W polycrystalline panel, but it will do so using less space than the polycrystalline. - How long will the solar panels last?
The RICH SOLAR MEGA Series solar panels have a performance warranty of 25 years. After 5 years of use, the panels should output more than 95% of the rated power. After 10 years, the output is 90%, and after 25 years, the output should be 80%.
