1600 Watt RV Solar Kit
1600 Watt RV Solar Kit – Embracing solar energy for your RV setup can significantly enhance your camping experience. The 1600 watt RV solar kit is designed for efficiency and functionality, enabling you to harness the power of the sun while you’re on the road. This comprehensive system is perfect for both full-time RVers and weekend adventurers.
Our largest 24V kit contains 8 high-efficiency 200W Monocrystalline panels with 18 busbars and our 60A MPPT controller. This kit can be paired with a 400AH 24V battery bank and can power most off-grid applications. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer!

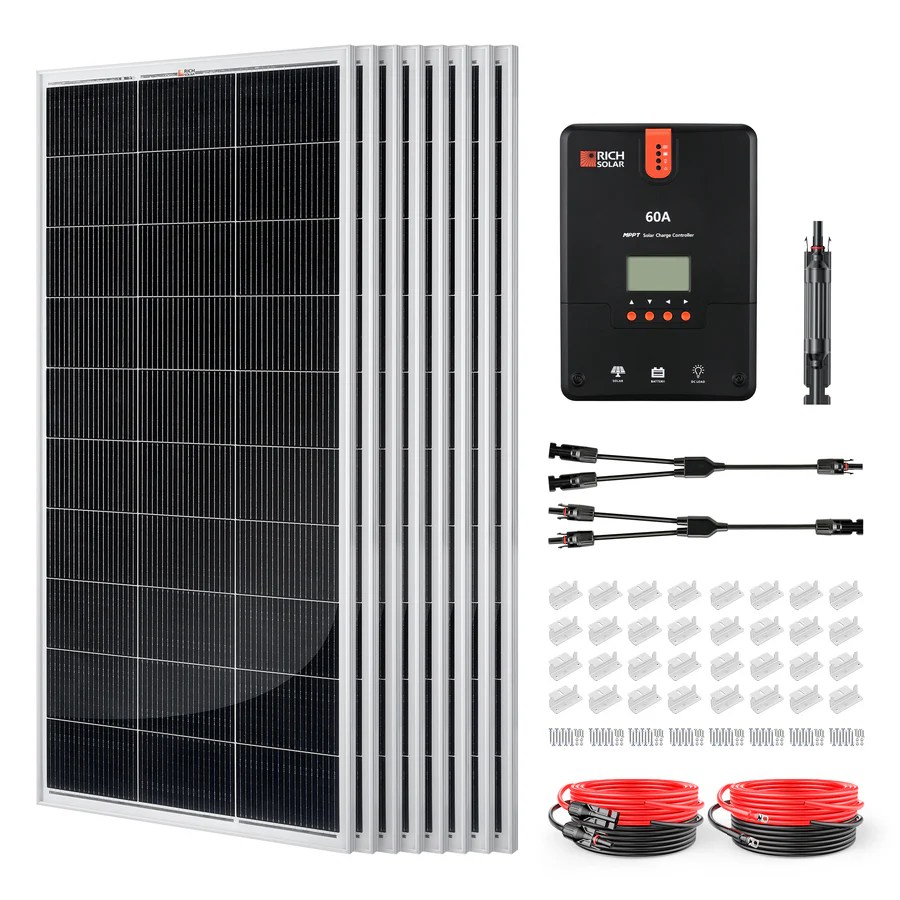

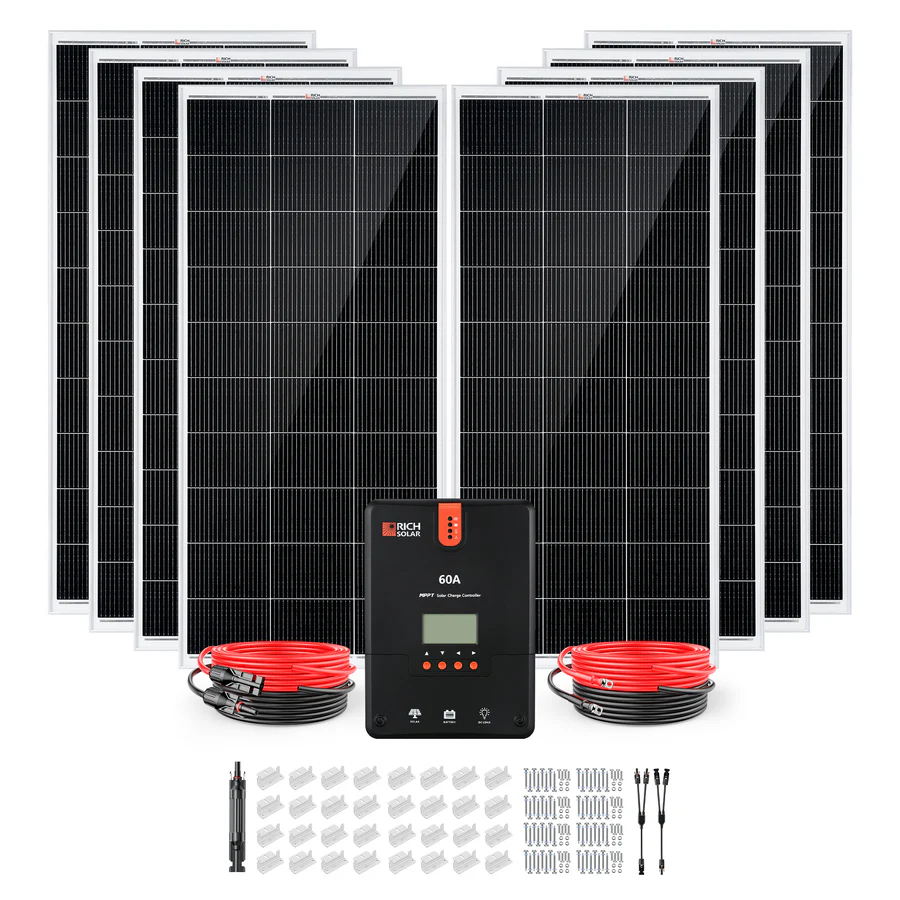

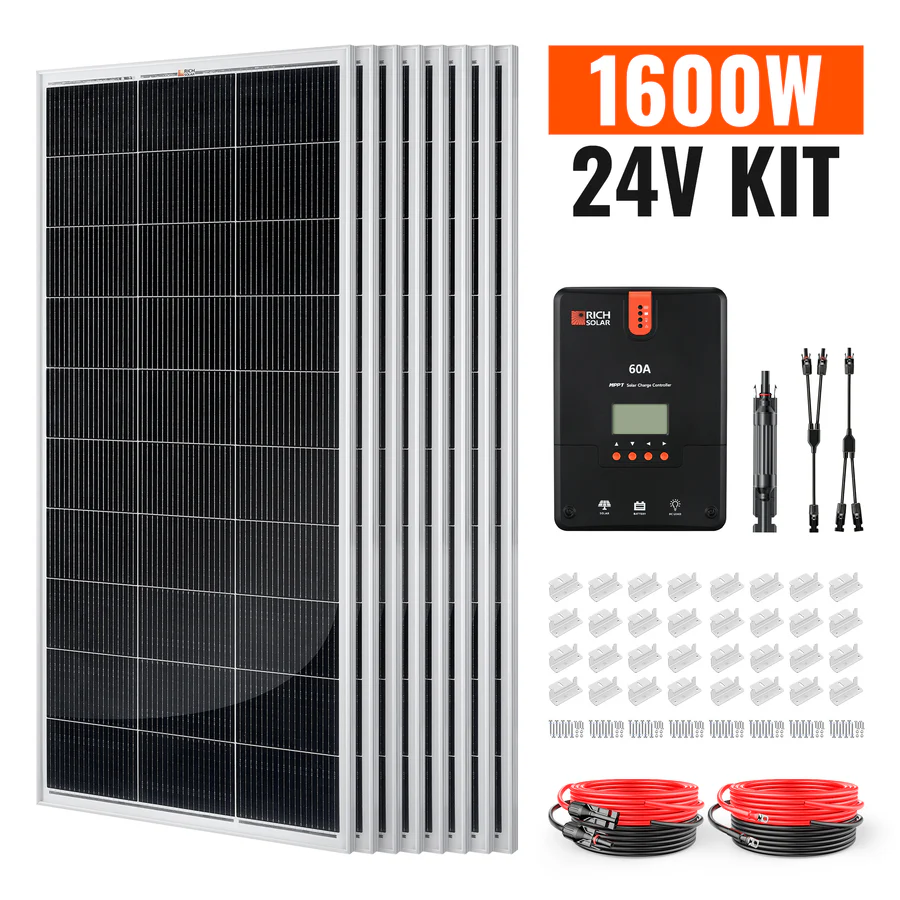

1600 Watt RV Solar Kit Includes:
- 8 x 200 Watt Monocrystalline Solar Panel (RS-M200)
- 1 x 60A MPPT Solar Charge Controller (RS-MPPT60)
- 1 x 20′ #10 Gauge Solar Cable (Red), connects the solar panel to the controller (RS-20101)
- 1 x 20′ #10 Gauge Solar Cable (Black), connects the solar panel to the controller (RS-20101)
- 1 x 10′ #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
- 1 x 10′ #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
- 8 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
- 1 x 30A Inline Fuse Holder with Fuse (RS-SC30F)
- 1 x Y Branch Parallel Adapters (RS-T2)
Key Features of the 24V Solar Kit
This 24V kit is equipped with eight high-efficiency 200W monocrystalline panels. Each panel features 18 busbars that improve performance in low-light conditions. The combination of these panels provides a strong power output, ensuring that your energy needs are met whether you’re parked in the wilderness or at a campsite.
MEGA 200 Watt Solar Panel
Features:
- Generates 10.9 amps of power, charges 12-volt batteries, has 3′ quick-connect cables with connectors, and works in series or parallel.
- Excellent low-light performance even on early mornings, evenings, and cloudy days.
- Built with strong, high-transmission “anti-reflective” coated tempered glass and an anodized aluminum frame.
- Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
- 25-year limited warranty for power output; 10-year workmanship warranty.
Benefits of the 60A MPPT Controller
At the heart of the 1600 watt RV solar kit is the advanced 60A MPPT (Maximum Power Point Tracking) controller. This smart technology optimizes the energy conversion process, allowing for maximum energy capture from the solar panels. By utilizing an MPPT controller, you can improve your solar system’s efficiency, leading to a longer battery life and increased power availability.
Features:
- Automatically detects 12V/24V/36V/48V DC system voltages.
- Compatible with various deep-cycle battery options: Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.
- Die-cast aluminum design allows for efficient heat dissipation.
- RS232 port for communicating with the BT-1 Bluetooth module.
In summary, the 1600 watt RV solar kit combines high-efficiency panels and a state-of-the-art controller to meet your energy needs effectively. With this system, you can enjoy your adventures while ensuring your power requirements are sustainably managed.
