Complete Off-Grid Solar Kit RS-H6548 | 8000W PV Input 48V 120VAC Output + 6560 (16×410) Watt Solar PV
Complete Off-Grid Solar Kit 8000W – In an era of rising energy costs and environmental awareness, off-grid solar solutions have gained popularity. The complete off-grid solar kit RS-H6548 is designed to provide reliable energy independence. This integrated system features an impressive 8000W PV input, making it a suitable choice for various off-grid applications.
Key Features of the RS-H6548
The RS-H6548 solar kit comprises 16 high-efficiency Mega 410-watt monocrystalline solar panels, totaling 6560 watts of solar PV output. These panels capture sunlight effectively, ensuring optimal energy generation even in less-than-ideal weather conditions. Additionally, the kit provides a robust 48V and 120VAC output, which caters to different energy requirements.

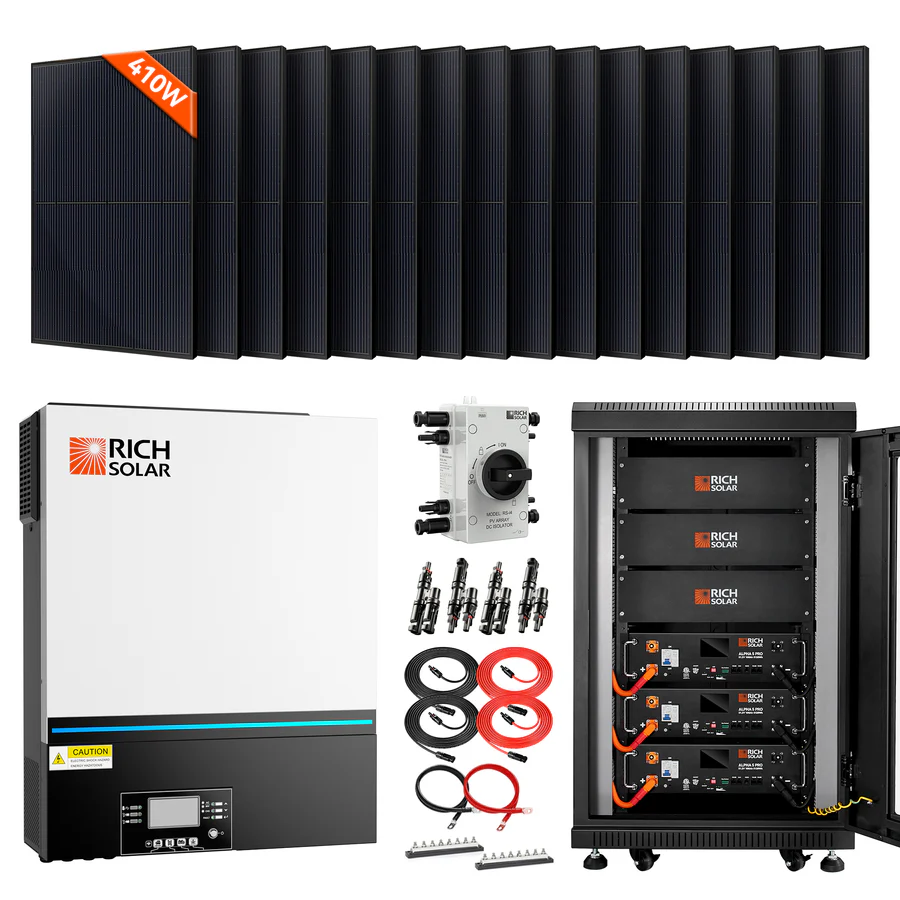

Complete Off-Grid Solar Kit 8000W Kit Includes:
- 16 x MEGA 410 Watt Monocrystalline Solar Panels (RS-M410)
- 1 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)
- 3 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P)
- 1 x Free Battery Rack (RS-SRA5P)

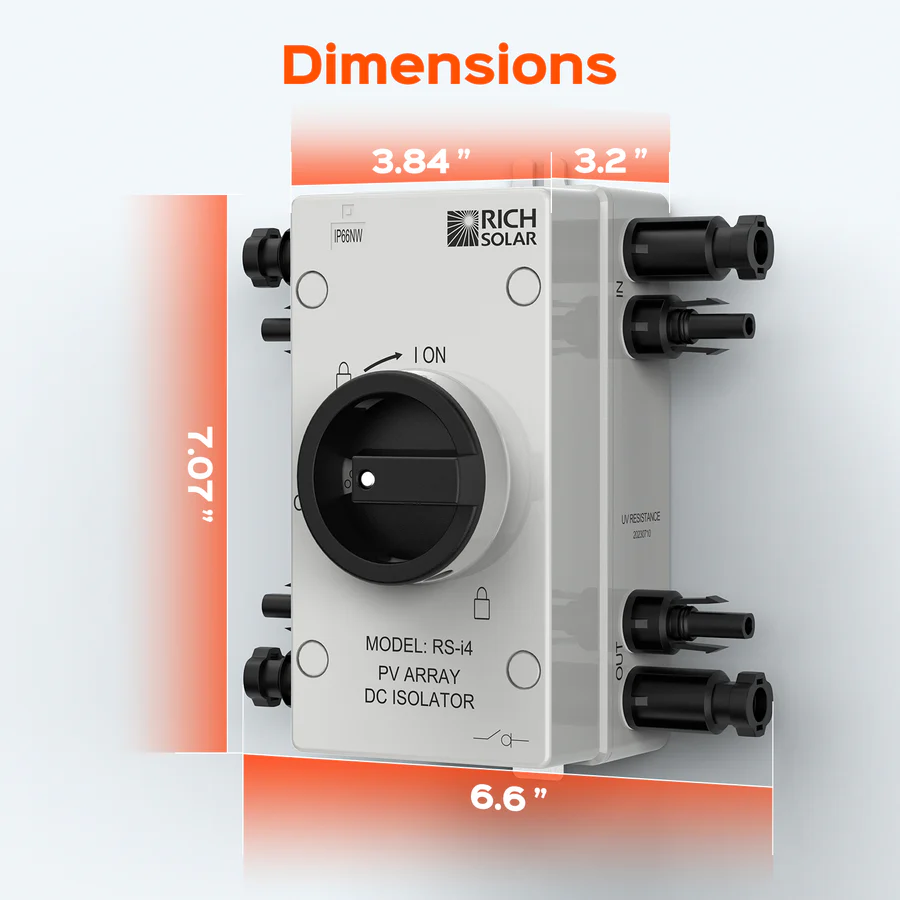

- 1 x Solar PV DC Quick Disconnect Switch (RS-i4)
- 2 x 4 Foot 2/0 Gauge AWG Wire Set 3/8″ (RS-2/0A4F3)
- 4 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)
- 2 x Y Branch Parallel Connectors 2 to 1 (RS-T2)
- 2 x Busbar 600 AMP
1. MEGA 410 Watt Solar Panels
The MEGA 410 maximizes power generation while minimizing space, equipment necessities, and cost by providing premium solar generation for off-grid systems. With the ability to generate 410W with 24V, the MEGA 410 can generate renewable energy and reduce electricity bills for any residential, agricultural, or commercial solar systems. Its anodized aluminum frame and tempered glass make it withstand any environment you put it in.
Features:
- 10-busbar solar cell configuration
- Mono PERC Technology
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug-and-play junction box
- Industry-standard quick-connect cables work in series or parallel
- Certified to withstand challenging environmental conditions
- Excellent low-light performance on cloudy days, mornings, and evenings
Specifications:
- Maximum Power(Pmax): 410W
- Maximum Power Voltage(Vmp): 31.3V
- Maximum Power Current(Imp): 13.1A
- Open Circuit Voltage(Voc): 37.5V
- Short Circuit Current(Isc): 13.8A
- Maximum System Voltage(Vmax): 1500VDC
- Temperature Range: -40°F ~ 185°F
- Max Series Fuse Rating: 25A
- Weight: 45.2 lb
- Dimensions: 67.9 x 44.7 x 1.2 in
2. ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery
Features:
- Model Name: ALPHA 5 PRO 51.2V
- Certification: UL1973, UL9540A, FCC
- 7,000 Deep Cycles Life
- 5120 Watt Hours Energy
- 100A Continuous Charge Current
- Compatible with multiple brands of inverters
- Low maintenance
- Overcharging or discharging protection
- Overcurrent & short circuit protection
- Parallel up to 15 Batteries
- Connect in Parallel for Larger Capacity
- With a Sophisticated Battery Management System (BMS)
- 10 Years Lifespan
Specifications:
Electrical Specifications
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Minimum Capacity: 99.5Ah
- Nominal Capacity: 5120Wh
Operating Specifications
- Charging Voltage: 56V
- Discharging Cutoff Voltage: 44.8V
- Maximum Charging Current: 100A
- Continuous Charge Current: 100A
- Maximum Discharge Current: 100A

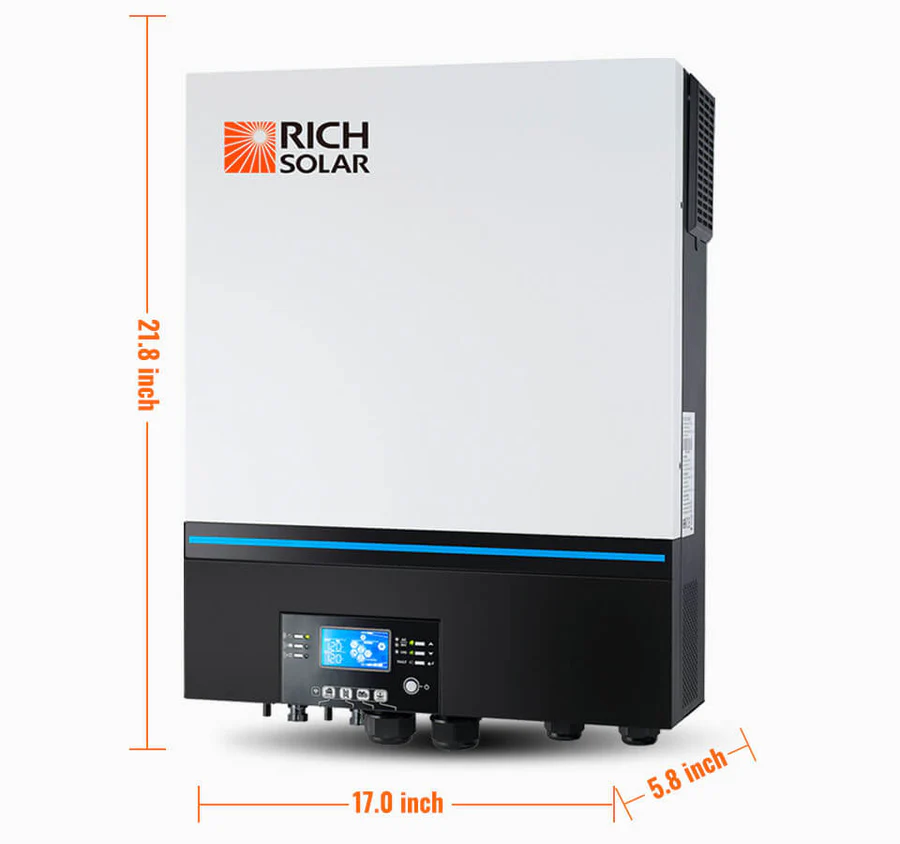

3. NOVA 6.5kW Inverter 48V Off-Grid Hybrid Solar Inverter
Features:
- Pure Sine Wave Inverter
- Configurable color with the built-in RGB LED bar
- Built-in Wi-Fi for mobile monitoring (APP is required)
- Supports USB On-the-Go function
- Built-in anti-dusk kit
- Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
- Configurable input voltage ranges for home appliances and personal computers via LCD control panel
- Configurable AC/PV output usage timer and prioritization
- Configurable AC/Solar charger priority via LCD control panel
- Configurable battery charging current based on applications via LCD control panel
- Compatible with utility mains or generator power
- Auto-restart while AC is recovering
- Overload/over temperature/short circuit protection
- Parallel operation with 6 units
- Smart battery charger design for optimized battery performance
- Cold start function
Specifications
- Model: RS-H6548
- Rated Inverter Power: 6500VA/6500W
- PARALLEL CAPABILITY: Yes, 6 units
- Input
- Voltage: 120 VAC
- Selectable Voltage Range: 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances)
- Frequency Range: 50 Hz/60 Hz (Auto Sensing)
- Output
- AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
- Surge Power: 2* rated power for 5 seconds
- Efficiency (Peak): 91%
- Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
- Waveform: Pure Sine Wave
- Optional DC Voltage: 12 VDC ± 7%, 100W
Benefits of the Complete Off-Grid Solution
Investing in the RS-H6548 not only grants energy independence but also promotes sustainability. It reduces reliance on fossil fuels, allowing users to generate clean, renewable energy.
Furthermore, with its scalable design, this complete off-grid solar kit can adapt to increasing energy demands, making it a long-term solution for remote homes, cabins, or even for powering small businesses. Overall, with numerous advantages and impressive features, the RS-H6548 stands out as a top-tier choice for those seeking to harness solar energy.
