NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery
Hybrid Inverter Solar Kit 61.44kWH – The Nova 12K PV Hybrid Inverter Solar Kit is a revolutionary solution for those looking to harness solar energy effectively. With a Capacity of 12000W PV input and an output of 10000W, it offers a robust performance suitable for various applications.
This inverter stands out due to its innovative technology, allowing seamless integration with both solar power systems and traditional power sources.
Hybrid Inverter Solar Kit 61.44kWH Includes:
- 1 x NOVA 12K PV Hybrid Inverter 12000W PV Input | 10000W Output | 48V 120/240V Split Phase (RS-H12K)
- 12 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P)
- 2 x Free Battery Rack
Features and Specifications
This solar kit not only includes the Nova 12K inverter itself, but it is also paired with an advanced 61.44 kWh lithium battery. This combination ensures that you have the necessary energy storage to maximise your solar power usage. Furthermore, its 48V 120/240V split-phase capability provides flexibility in how you can set up your energy system, allowing it to cater to diverse energy needs.
1. NOVA 12K PV Hybrid Inverter 12000W PV Input
Features:
- Model Name: Nova 12K PV
- Support multiple input & output – Split phase 120/240VAC Split phase, 120V/208V Split phase
- Door-type cable compartment.
- Built-in 300A DC breaker and 60A AC breaker.
- Built-in AC-coupled function.
- Built-in Wi-Fi for mobile monitoring (APP is available).
- Accepts a second input power source, generator input compatible.
- Built-in arc fault detection (AFD) and rapid shutdown (RSD).
- External CT sensor to guarantee 100% self-consumption.
- Built-in communication port for BMS (RS-485).
- User-adjustable charging current and voltage.
- Parallel operation up to 6 units.
- Idle Consumption: -150W (±10%)
Specifications:
- Input
- Maximum PV Input Power:12000W
- Maximum DC Voltage:600VDC
- Start-up Voltage/Initial Feeding Voltage:125VDC/160VDC
- MPPT Voltage Range:120VDC-550VDC
- Number of MPPT Trackers/Maximum Input Current:2/18A
- Output
- Rated Output Power:10000VA/10000W
- Nominal Output Voltage:120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
- Output Voltage Range:105.5–132VAC per phase
- Nominal Output Current:41.5A per phase
- Battery
- Battery DC Voltage Range:40–62VDC/48VDC
- Maximum Solar Charging Current:200A
- Maximum AC Charging Current:200A
- Maximum Charging Current:200A

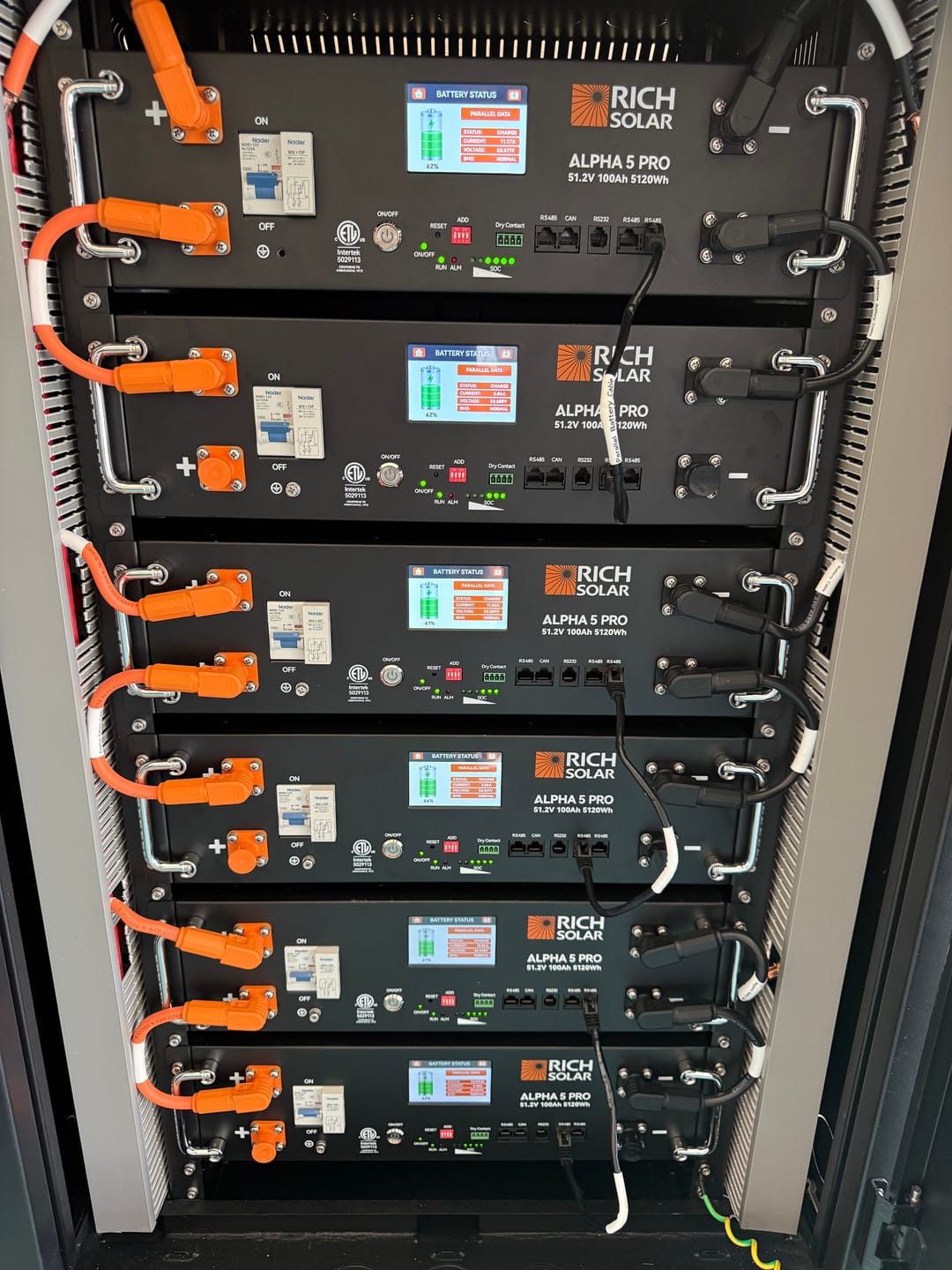

2. ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery
Features:
- Model Name: ALPHA 5 PRO
- Certification: UL1973, UL9540A, FCC
- 7,000 Deep Cycles Life
- 5120 Watt Hours Energy
- 100A Continuous Charge Current
- Compatible with multiple brands of inverters
- Low maintenance
- Overcharging or discharging protection
- Overcurrent & short circuit protection
- Parallel up to 15 Batteries
- Connect in Parallel for Larger Capacity
- With a sophisticated Battery Management System (BMS)
- 10 Years Lifespan
Specifications:
- Electrical Specifications
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Minimum Capacity: 99.5Ah
- Nominal Capacity: 5120Wh
- Operating Specifications
- Charging Voltage: 56V
- Discharging Cutoff Voltage: 44.8V
- Maximum Charging Current: 100A
- Continuous Charge Current: 100A
- Maximum Discharge Current: 100A
Benefits of Using the Nova 12K Solar Kit
There are numerous advantages to utilising the Nova 12K PV Hybrid Inverter Solar Kit. Most notably, it enhances energy efficiency by reducing reliance on grid power, which can lead to significant cost savings. Additionally, the system’s hybrid capabilities facilitate backup power during outages, ensuring an uninterrupted energy supply.
With its user-friendly design and enhanced reliability, the Nova 12K kit emerges as a top choice for both residential and commercial solar energy solutions.
