Hybrid Solar Kit 11.4KW 48V Split Phase 30.72KWH Lithium Battery 28 X 450 Watt Solar Panel SGH-11N3E
The Hybrid Solar Kit 30.72KWH 48V split-phase is an innovative solution for those seeking sustainability and energy independence. This advanced kit features a powerful 30.72kWh lithium battery, ensuring optimal energy storage and utilisation. With 28 high-efficiency 450-watt solar panels included, users can generate ample energy for various daily needs.
This hybrid solar kit includes 12,600 W of solar panels, an 11.4 kW hybrid inverter, and 30.72 kWh of lithium battery storage. The system supports flexible configurations—off-grid, hybrid, or grid-tied—enabling you to power appliances with solar energy, feed excess power back to the grid, and optionally store energy to offset bills or provide backup during outages.

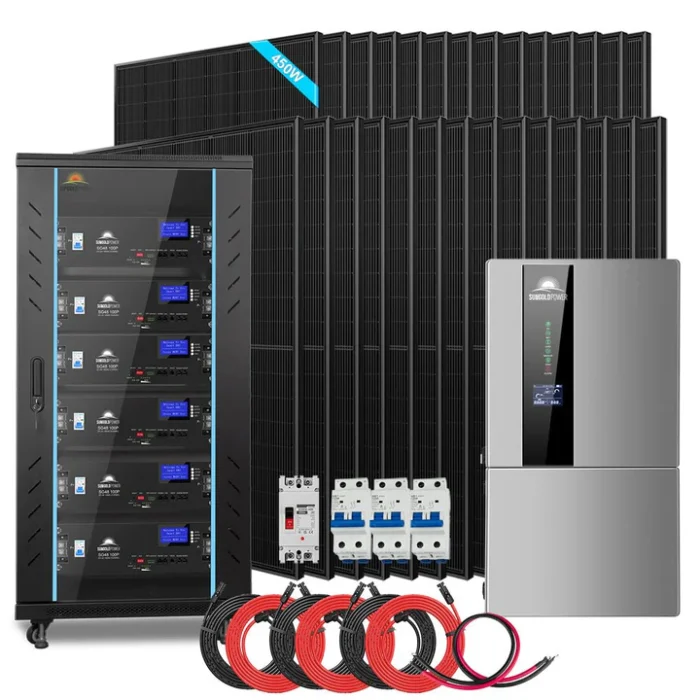

What is included with the solar kits?
- 1 X 11.4KW 48V Split-Phase Hybrid Solar Inverter
- 28 X 450W Bifacial N-Type Monocrystalline Solar Panels
- 6 X 100AH 51.2V LiFePO₄ Battery
- 1 X Enclosed Battery Cabinet for 6 X 100AH 51.2V LiFePO₄ Batteries
- 3 Sets X 50 Feet Solar Extension Cables-Inverter PV Input
- 2/0 AWG Battery Cable
- 3 X 25A PV Breakers
- 1 X 200A DC Breaker
Hybrid Solar Kit 11.4KW Specifications
1. Solar Kit 11.4KW Specifications
| Model Number | SGH-11N3E |
| AC Output | 11,400W |
| Output Waveform | Pure Sine Wave |
| AC Output | 120/240V (split phase)/208V (2/3 phase) VAC |
| Max PV Input | 600 VDC |
| Max. PV Input Power | 15,000W |
| Max Charging Current | 210A |
| Max. Input Current per MPPT | 30A/22A/22A |
| Nos. of MPPT | 3 |
| Dimension | 16.5 X 31.5 X 9.4 inches |
| Weight | 88 lb |
| Warranty | 10 Years |
| Certificates | UL1741/CSA, C22.2/UL1699B |
2. Battery Specifications
| Battery Model | SG48100P |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100AH |
| Energy | 5.12 KWH |
| Charge cut-off current | 5A |
| MAX Continuous Charge Current | 100A |
| Discharge cut-off voltage | 43.2V |
| Cycle Life | ≥7000 |
| Communication Protocol | RS232/RS485/CAN: Supports multiple protocols. |
| Storage Temperature | 14~+113°F |
| Dimension | 19.3 X 18.9 X 5.5 inches |
| Weight | 93 lbs |
| Warranty | 10 Years |
| Certificates | UL1973, UL9540A |
3. Solar Panel Specifications
| Specification | Value |
| Peak Power | 450W |
| Cell Type | N-type Monocrystalline |
| Product Tolerance | ±3% |
| Maximum Power Current (IMP) | 14.97A |
| Maximum Power Voltage (VMP) | 30.08V |
| Short Circuit Current (ISC) | 16.05A |
| Open Circuit Voltage (VOC) | 35.03V |
| Product Dimension | 69.37 * 44.65 * 1.38 inch |
| Product Weight | 53.35 lbs |
| Material and workmanship warranty | 12 Years |
| Performance Warranty | 30 Years |
| Certificates | UL61730, CEC Listed |
Advantages of Choosing a Hybrid System
One of the prime advantages of the hybrid solar kit is the ability to harness energy from both solar and battery sources. This combination allows users to maximise their energy generation while minimising reliance on the grid. The lithium battery’s robust capacity ensures that energy is available even during cloudy days or at night, promoting a continuous power supply.
Installation and Maintenance
Setting up the hybrid solar kit is straightforward, especially for those with some technical knowledge. The inclusion of clear instructions and comprehensive support makes the process easier for homeowners. Maintenance of the system is minimal, with routine checks sufficient to ensure optimal functionality, giving users peace of mind while they enjoy the benefits of renewable energy.
In conclusion, the hybrid solar kit 11.4kW represents a significant investment in sustainable energy. By integrating cutting-edge technology and efficiency, this system not only reduces energy costs but also contributes to a cleaner environment.
