5000W 48V Solar Charger Inverter

5000W 48V Solar Charger Inverter

5000W 48V Solar Charger Inverter—The SPH series is a new all-in-one solar storage inverter, which integrates solar energy storage and means charging energy storage and AC sine wave output. Thanks to DSP control and the advanced control algorithm, it has high response speed, high reliability, and high industrial standards. Four charging modes are optional, i.e., only solar, mains priority, solar priority, and mains & solar hybrid charging; and two output modes are available, i.e.,

Inverter and mains to meet different application requirements. The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time.

Through a state-of-the-art control algorithm, the AC-DC charging module realizes fully digital voltage and current double closed-loop control, with high control precision in a small volume. Wide AC voltage input range and complete input/output protections are designed for stable and reliable battery charging and protection.

Based on full-digital intelligent design, the DC-AC inverter module employs advanced SPWM technology and outputs a pure sine wave to convert DC into AC. It is ideal for AC loads such as household appliances, power tools, industrial equipment, and electronic audio and video equipment. The product comes with a segment LCD design, which allows real-time display of the operating data and status of the system. Comprehensive electronic protections keep the entire system safer and more stable.

5000W 48V Solar Charger Inverter Features

1. Anti-backflow grid connection function, support for inverter and mains power hybrid output, support for use without battery, and can be set up for on-grid power generation.
2. Two output modes: mains bypass and inverter output; uninterrupted power supply.
3. Available in 2 charging modes: Only solar and grid & solar hybrid charging.
4. Advanced MPPT technology with an efficiency of 99.9%.

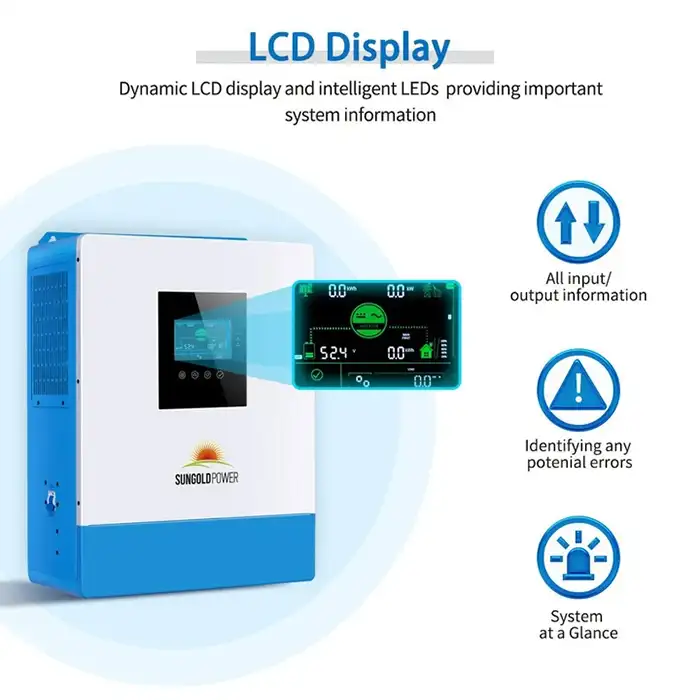

5. Designed with an LCD screen and 3 LED indicators for dynamic display of system data and operating status.
6. With time slot control, you can set the priority of using the mains and battery according to the time slot in conjunction with the local peak and valley tariffs.
7. Power-saving mode available to reduce no-load loss.
8. An intelligent variable speed fan efficiently dissipates heat and extends system life.

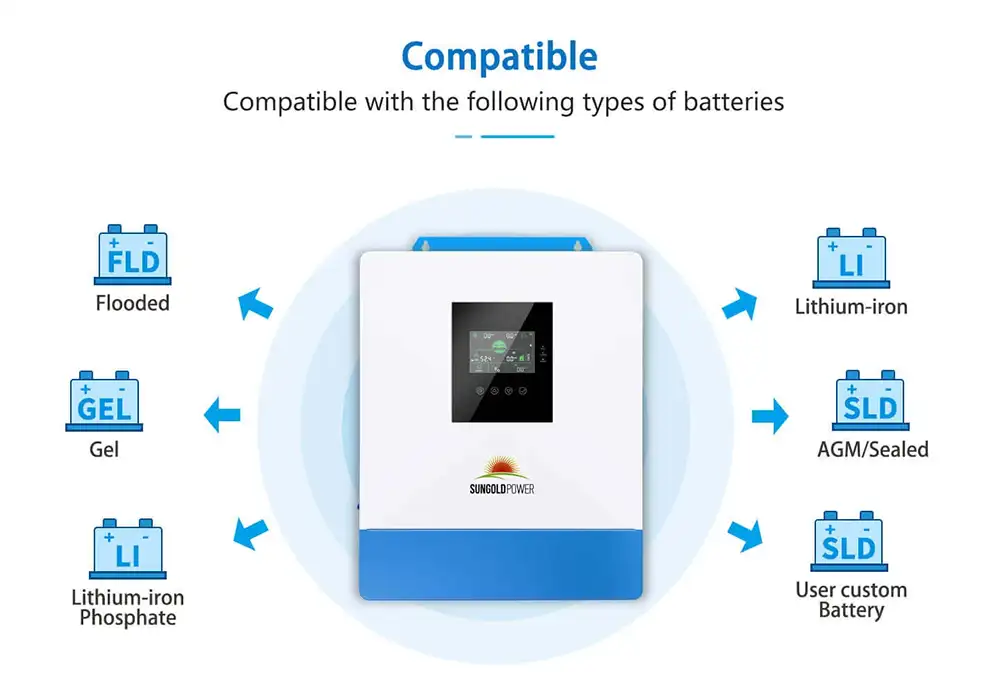

9. Lithium battery activation by PV solar or mains, allowing access to lead-acid batteries and lithium batteries.
10. 360° all-around protection with a number of protection functions.
11. Complete protection, including short-circuit protection, overvoltage and undervoltage protection, overload protection, reverse protection, etc.

5000W 48V Solar Charger Inverter Specifications
