8 KW 48 V Solar Inverter Split Phase
The 8KW 48V Solar Inverter Split Phase series is a new type of solar storage inverter that integrates PV storage, mains charge, and energy storage and outputs sinusoidal AC. Equipped with DSP control and an advanced control algorithm, it has high response speed and good reliability and applies to industrial scenarios.
Features

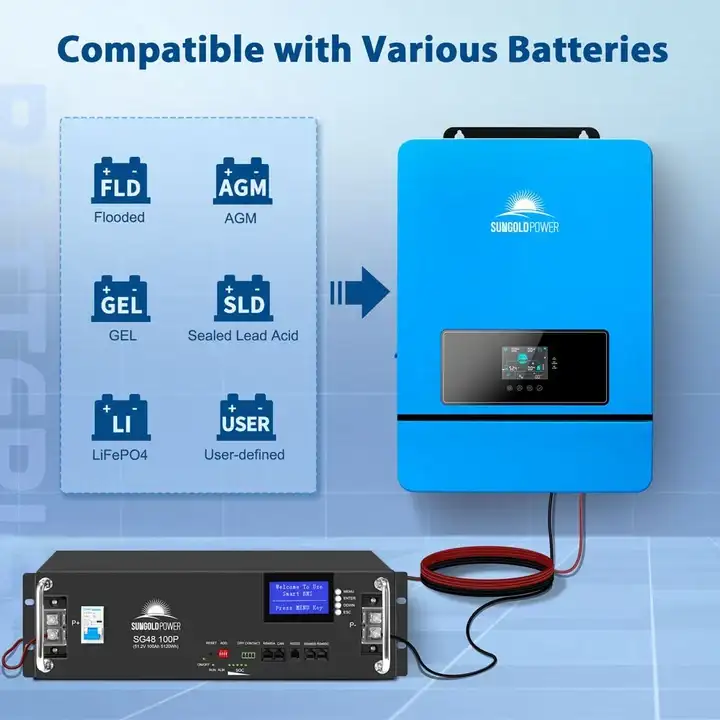

- Supports the connection of various types of energy storage batteries, such as lead-acid batteries and lithium-ion batteries
- Has a dual activation function during lithium-ion battery sleep; that is, access to mains/PV power can activate the lithium-ion battery

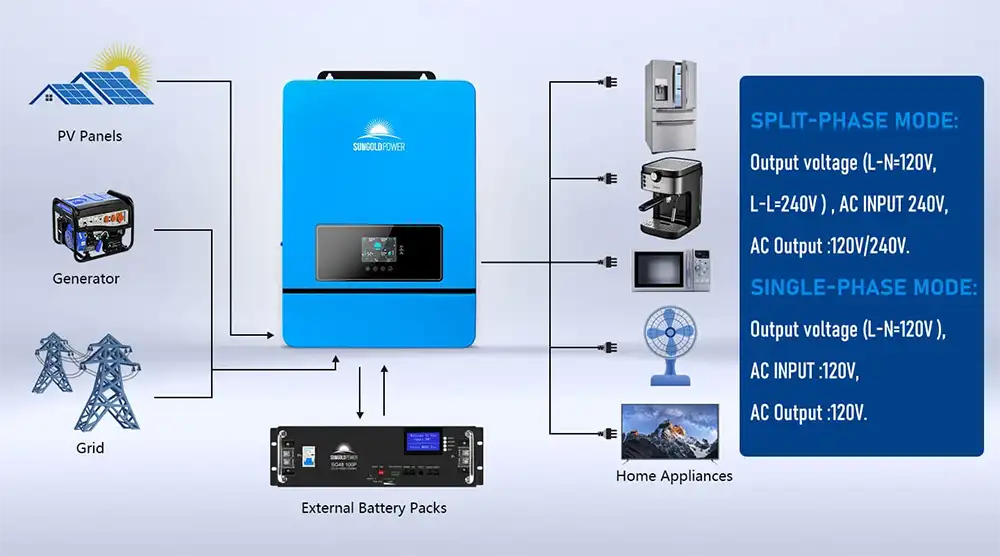

- Supports split-phase/single-phase pure sine wave output
- Support adjusting the voltage of each phase within the range of 100 VAC, 105 VAC, 110VAC,115VAC, 120VAC,127VAC
- Support two-channel PV input and have the function of simultaneous two-channel Max. powerpoint tracking (MPPT) for charging/carrying capacity
- Support two-channel MPPT, with an efficiency of up to 99.9% and a maximum single-channel current of 22 A, perfectly fitting high-power modules
- Provide four charge modes: only PV, mains first, PV first, and mains + PV
- Have a timed charge and discharge function; that is, users can set the charge and discharge time according to the time-of-use price to save electricity costs
- Have an energy-saving mode, reducing no-load energy losses
- Provide two output modes: mains bypass output and inverter output, achieving uninterrupted power supply

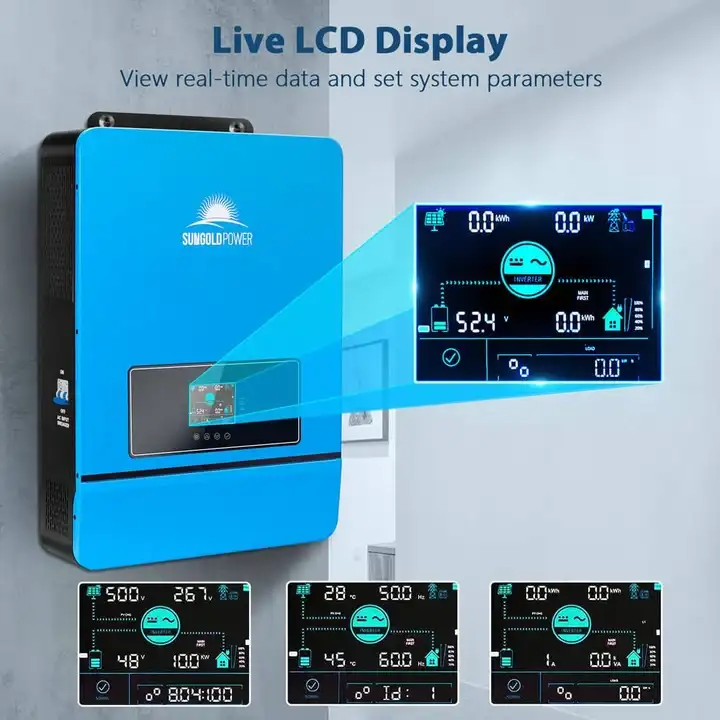

- Support LCD display of dynamic flowchart, updating system data, and operating status at any time
- Provide 360° protection, including short-circuit protection, overcurrent protection, overvoltage and undervoltage protection, and overload protection
- Support CAN, USB, and RS485 communication
Specifications of 8KW 48V Solar Inverter Split Phase
| MODEL | SPH8048P | SPH10048P |
|---|---|---|
| INVERTER OUTPUT | ||
| Rated Output Power | 8,000W | 10,000W |
| Max. Peak Power | 16,000W | 20,000W |
| Rated Output Voltage | 120/240 Vac (split phase/single phase) | |
| Load Capacity of Motors | 5HP | 6HP |
| Rated AC Frequency | 50/60Hz | |
| Waveform | Pure Sine Wave | |
| Switch Time | 10ms (typical) | |

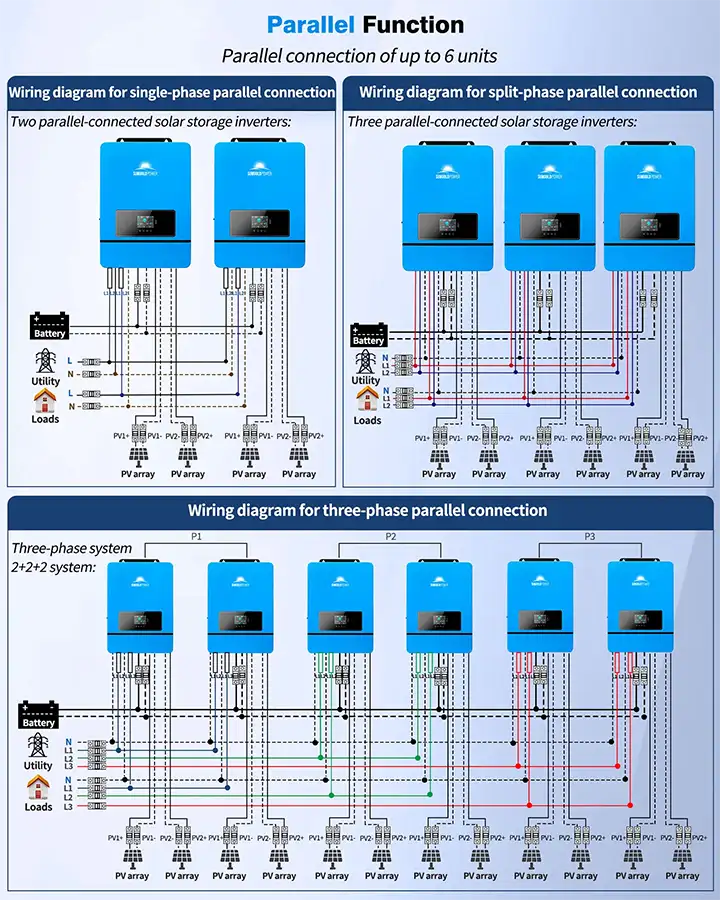

| Parallel capacity | 6 | |
| Overload | After triggering the overload protection, the inverter will resume output after 3 minutes; 5 consecutive overloads will switch off the output until the inverter is restarted. (102% < load < 110%) ±10%: error and output shutdown after 5min; (110% < load < 125%) ±10%: error and output shutdown after 10 s. Load > 125% ±10%: error reported, and output switched off after 5 s. | |
| BATTERY | ||
| Battery Type | Li-ion / Lead-Acid / User-Defined | |
| Rated Battery Voltage | 48 Vdc | |
| Voltage Range | 40-60 Vdc | |
| Read More |
Top Benefits
This inverter’s dual 99.9% efficiency MPPT technology is a game-changer. By converting virtually all available solar energy into usable power, you’ll see dramatic improvements in your system’s ROI. The built-in dual solar controllers eliminate the need for separate equipment, saving thousands in installation costs while delivering unmatched performance.

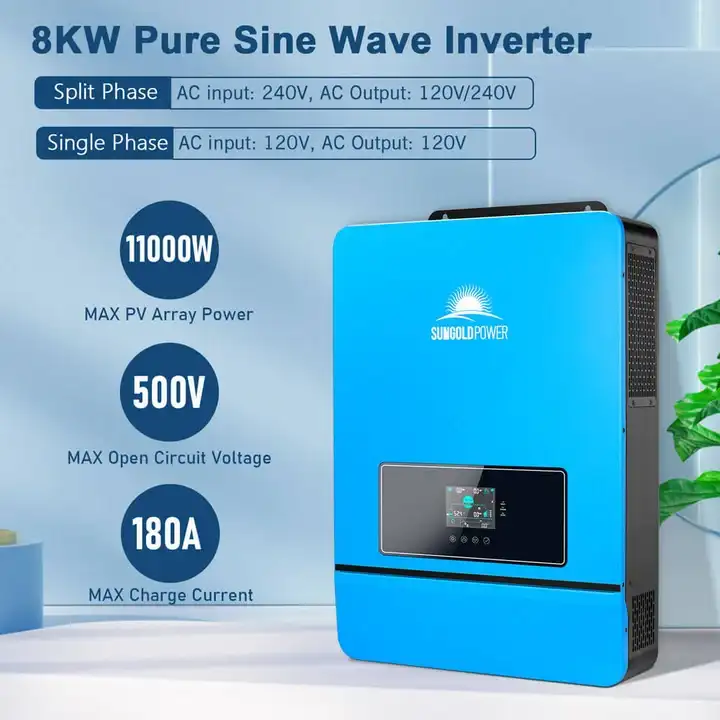

Whether you’re running a high-power setup or expanding your system later, the 11,000W PV input capacity ensures you’re never limited by your inverter.
Who It’s For
Perfect for homeowners and businesses committed to energy independence, this inverter empowers those who refuse to compromise on power quality or system reliability. If you’re tired of grid dependency, fluctuating electricity rates, or undersized solar systems that don’t meet your needs, this is your solution.
It transforms your daily life by providing consistent, abundant clean energy—whether you’re powering a modern home, running essential business operations, or maintaining off-grid comfort year-round.
