Inverter All-in-One Energy Storage System

All-in-One Energy Storage System

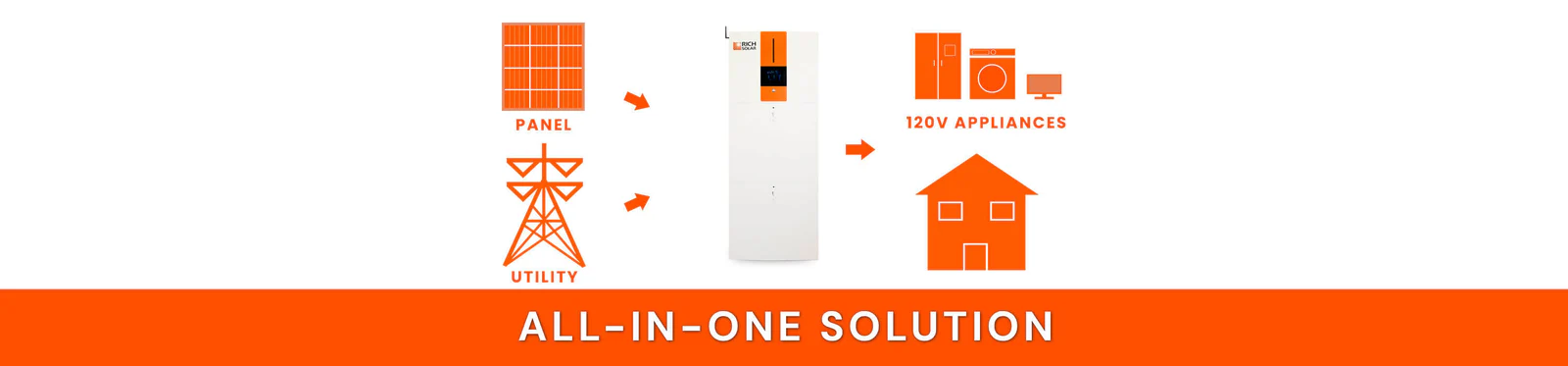

Inverter All-in-One Energy Storage System from RICH SOLAR is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.

Inverter All-in-One Energy Storage Features

1. Power & Performance Features

• Pure sine wave output
• Off-Grid application
• Programmable supply priority for PV, Battery, or Grid
• User-adjustable battery charging current
• Battery independent design

2. Smart Technology & Connectivity

• Multiple communication for USB, RS232, SNMP, Modbus, GPRS, and Wi-Fi
• Monitoring APP (Android and iOS) for real-time status display and parameter control
• Built-in 2 MPPT trackers and an AC/Solar charger up to 120A
• Compatible with the utility and the generator
• Scalable Li-Ion battery expansion

The compact design of an All-in-One Energy Storage System makes it an attractive option for those with limited space or for those who want a more discreet installation. It can also be easier to install and maintain compared to larger energy storage systems, which may require more extensive wiring and infrastructure.

Inverter All-in-One Energy Storage Specifications

1. Battery Info

• Model: RS-A10
• Maximum PV Input Power: 8000W
• Rated Output Power: 6500W
• Maximum Charging Power: 6500W

2. PV Input (DC)

• MPPT Range @ Operating Voltage: 90 ~ 230 VDC
• Maximum PV Array Open Circuit Voltage: 250 VDC
• Maximum Solar Charge Current: 120A
• Number of MPP Trackers / Maximum Input Current: 2 / 2 x 18A

3. AC Input

• Acceptable Input Voltage Range:
  • 90–140 VAC (For Computers)
  • 80–140 VAC (For Home Appliances)
• Maximum AC Input Current: 60A

4. Battery Mode Output

• Nominal Output Voltage: 120 VAC
• Maximum Conversion Efficiency (DC/AC): 93%

5. Battery

• Nominal DC Voltage: 48 VDC
• Maximum Charging Current: 120A
• Dimension (D × W × H): 8.4″ × 24.4″ × 19.7″
• Net Weight: 99 lb
• Capacity: 5120Wh
• Nominal Voltage: 51.2VDC
• Full Charge Voltage (FC): 56V
• Full Discharge Voltage (FD): 42V
• Typical Capacity: 100Ah
• Max Continuous Discharging Current: 120A
• Max Discharging Current: 192A at 1 min
• Protection: BMS, Breaker
• Float Charge Voltage: 52.5V
• Charge Current: 20A (0.2C)
• Maximum Charge Current: 50A (0.5C)
• Standard Charge Method: 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C
• Inner Resistance: ≤20mΩ

6. All-in-One System Physical

• System Dimension (D × W × H): 19.7″ × 26″ × 49.2″
• Net Weight: 287 lb
• Compliance Safety: IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B
