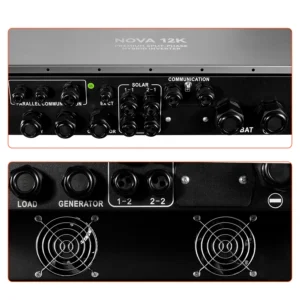

Inverter NOVA 12K 12000 Watt

NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV Input, 10000W Continuous Output 120/240V | Premium 12000W 48V Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified

Inverter NOVA 12K 12000 Watt – Experience uninterrupted home power with the inverter engineered for demanding residential applications—the NOVA 12K hybrid system.

Inverter NOVA 12K 12000 Watt Features

1. Power Flexibility

• 120/240V split-phase or 120/208V split-phase
• Supports generator input & AC coupling
• Scalable to 6 parallel units

2. Intelligent Control

• Real-time monitoring via WiFi & mobile app
• BMS integration through RS485 interface
• External CT sensor for 100% self-consumption

3. Advanced Safety

• 300A DC + 60A AC Integrated breaker
• AFD/RSD (NEC 690.11/690.12)
• Ground fault detection (NEC 690.5)
• PV input lightning protection

4. Premium Performance

• 91% DC-to-AC efficiency | Pure sine wave
• Multi-mode operation: Grid-tie/Off-grid/Hybrid

Benefits:

• 12,000W PV input capacity with 10,000W continuous output
• 48V split-phase technology delivers reliable 120/240V power
• Hybrid design seamlessly switches between solar, battery, and grid power
• UL certified for safety and reliability
• Compact, efficient design perfect for tight spaces
• An advanced battery management system maximizes lifespan
• Compatible with existing renewable energy systems

Inverter NOVA 12K 12000 Watt Specifications

• Maximum PV input power: 12000W
• Parallel capability: 6 units

1. Input

• Maximum PV input power: 12000W
• Voltage range: 120–550VDC
• Startup voltage: 125V
• MPPT: Dual inputs — 2 × 18A (30A peak)

2. Output

• Rated output power: 10000VA/10000W
• Nominal output voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
• Output voltage range: 105.5–132VAC per phase
• Nominal output current: 41.7A per phase

3. Battery

• Battery DC voltage range: 40–62VDC/48VDC
• Maximum solar charging current: 200A
• Maximum AC charging current: 200A
• Maximum charging current: 200A

4. Operating Environment

• Operating temperature range: -13°F to 140°F(>113°F derating)
• Protection degree: IP65
• Communication port: RS232, RS485, Wi-Fi, USB

5. Physical

• Dimension (LxWxH): 8.5×20.3×28.1in/215x516x714mm
• Net weight: 112lb/51kg

6. Certificate

• Ul 1741SA/SB, CSA C22.2 No.107.1, IEEE 1547
• Cec-listed, FCC Part 15 Class B
• Compliant with CA rule 21 and HECO rule 14H

Maximum Power, Maximum Reliability

The NOVA 12K delivers the robust 10,000W continuous output you need to run your entire home or property without compromise. Whether you’re powering multiple appliances simultaneously or managing peak loads during cloudy days, this inverter maintains steady, clean power.

The split-phase 120/240V output means you can operate everything from high-demand tools to sensitive electronics with confidence—no brownouts, no shutdowns, just consistent energy whenever you need it.

Perfect for Anyone Ready to Take Control

If you’re building a cabin retreat, expanding with an ADU, downsizing to a tiny home, or managing agricultural operations, the NOVA 12K transforms how you think about energy.

Homeowners, off-gridders, and agricultural professionals all experience the same benefit: complete energy autonomy without sacrificing comfort or convenience. Stop paying inflated utility bills and start generating your own power today.
