EG4 18k PV Hybrid Inverter | Outdoor-ready | All-In-One Solar Inverter | 18000W PV Input | 12000W Output | 48V 120/240V Split Phase | EG4-18KPV-12LV
The EG4 18k PV Hybrid Inverter is an impressive unit designed for homeowners and small businesses looking for a robust and integrated solar power system. Boasting a substantial 18,000 W PV input and a 12,000 W output, this inverter can handle significant solar arrays and power-demanding loads. Its outdoor-ready design means it’s built to withstand the elements, simplifying installation and placement options.

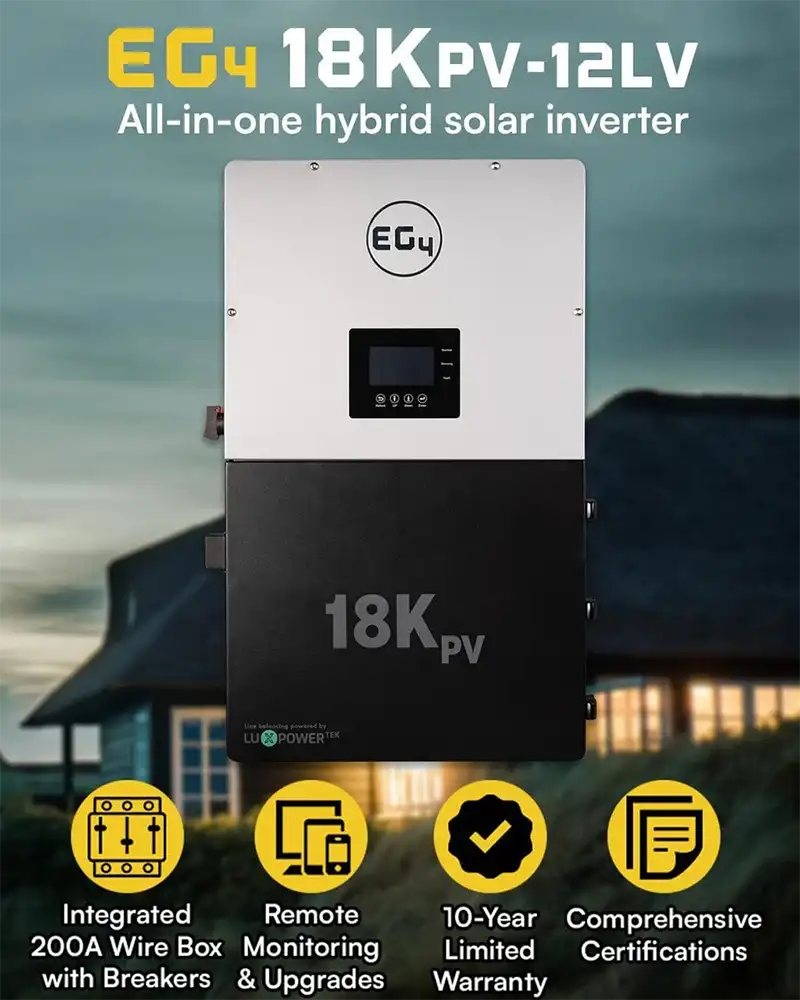

EG4 18k PV Hybrid Inverter
Introducing the EG4 18k PV All-In-One Hybrid Inverter, the ultimate power solution for any solar project! This innovative hybrid inverter combines the functionality of a grid-tied and off-grid system together while eliminating the need for charge controllers or transformers to create a convenient, independent, all-purpose powerhouse. It also boasts an extensive list of certifications and compliance, helping it meet typical electrical regulations.
Utilize solar power directly, battery storage, and grid power simultaneously to power your home, RV, or any other solar project with up to 12,000W of uninterrupted, continuous output. And in case of a power outage, the EG4 18kPV All-In-One Hybrid Inverter can be used as a backup power system without solar.
With remote monitoring capabilities, an improved UI, and a sleek design, this inverter is a top-of-the-line solution for your solar power needs. It boasts a user-friendly interface with an LCD display that offers user-configurable and easy-to-access button operation, including battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
With its easy plug-and-play installation, comprehensive certifications, and efficient management of power from solar, battery, and grid simultaneously, the EG4 18kPV All-In-One Hybrid Inverter is the ultimate solution for any solar power system. Don’t compromise on utility; get the EG4 Hybrid Inverter for uncompromising power and reliability!
EG4 18k PV Features
1. Performance Components
- 18,000W PV input, 12,000W continuous output
- Stackable: parallel multiple units together
- Closed-loop communication with EG4 batteries
- Overload, short-circuit & over-temperature protection
2. All-In-One
- Everything needed to get started
- Simple plug-and-play installation and inverter management
- Manages power from energy storage systems and the grid simultaneously
- 120/240V split phase
3. Comprehensive Certifications
- Safety: UL1741SA all options, UL1699B, CSA 22.2
- EMC: FCC Part 15 Class
- Grid connection: IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I, II, III
4. Fully remote monitoring & firmware upgrades
- Remotely Monitor & View Your System
- The dashboard shows solar yield, battery charging/discharging rate & import consumption.
- Displays live energy data, battery charge and discharge limitations, and battery warnings or faults.
- View the power curve from each day.
- Displays key parameters over a 24-hour period
- Get historical data about your system for analysis and maintenance.
- Update firmware remotely anywhere at any time
18K PV Specifications
1. AC Input Data
- Nominal AC Voltage: 208/240 VAC
- Frequency: 60 Hz
- Max. Continuous AC Current: 50A
- Power Factor: 1
2. AC Grid Output Data
- Nominal Output Current: 50A
- Max. Output Current: 50A
- AC Bypass (Grid): 200 A
- Rated Voltage 240VAC
- Operating Voltage Range: 180–270 VAC
- Nominal Power Output (W): @240V 12,000W/@208V 10,400W
- Operating Frequency: 60 Hz
- Operating Frequency Range: 55–65 Hz
- Phase Shift: 0.99 at full load
- Reactive Power Adjustment Range: –0.8 to +0.8 (leading adjustable
- THDI (Total Harmonic Distortion Current): 3%
- Sync Inrush Current: 35A
3. Backup/UPS AC Output Data
- Nominal Output Current: 50A
- AC Bypass (Generator): 90A
- Nominal Output Voltage (V): 240 | 120/240 | 120/208 VAC
- Rated Output Power (VA): @240 VAC 12,000 W/@208 VAC 10,400 W
- Max Cont. Line Wattage: 8,000W per 120V
- Surge Power (W): 14,000 W (10 min.), 16,000 W (5 min.)
- Operating Frequency: 60 Hz
- Peak Power (VA): 24,000 VA (0.5 s)
- THDV (Total Harmonic Distortion Voltage): <3%
- Switching Time: < 20 ms
4. PV Input Data
- Max. Usable Input Current: 25/15/15A
- Max. Short Circuit Input Current: 31/19/19A
- Start Input Voltage: 100 VDC
- Startup Voltage: 140 VDC
- Full Power MPPT Voltage Range: 230–500 VDC
- Nominal MPPT Tracker DC Voltage: 360 VDC
- Nominal DC Voltage Range: 100–600 VDC
- MPP Operating Voltage Range: 120–500 VDC
- Maximum Utilized Solar Power: 18,000 W
- Recommended Maximum Solar Input: 21,000 W
- Number of MPPTs: 3
- Inputs per MPPT: 2/1/1
5. General
- Dimensions: H×W×D 34.3×20.5×11.2 in. (87×52×28.5 cm)
- Weight: 110.2 lbs. (50 kg)
- Degree of Protection: NEMA4X/IP 65
- Cooling Concept: Fan
- Topology: TL (Transformerless)
- Relative Humidity: 0-100%
- Altitude: <2,000 m
- Operating Temperature Range: -25~60°C, >45° derating
- Noise Emission: < 50 dB
- Display: Color touchscreen
- Communication Interface: Rs485/Wi-Fi/CAN
- Standard Warranty: 10-year standard warranty

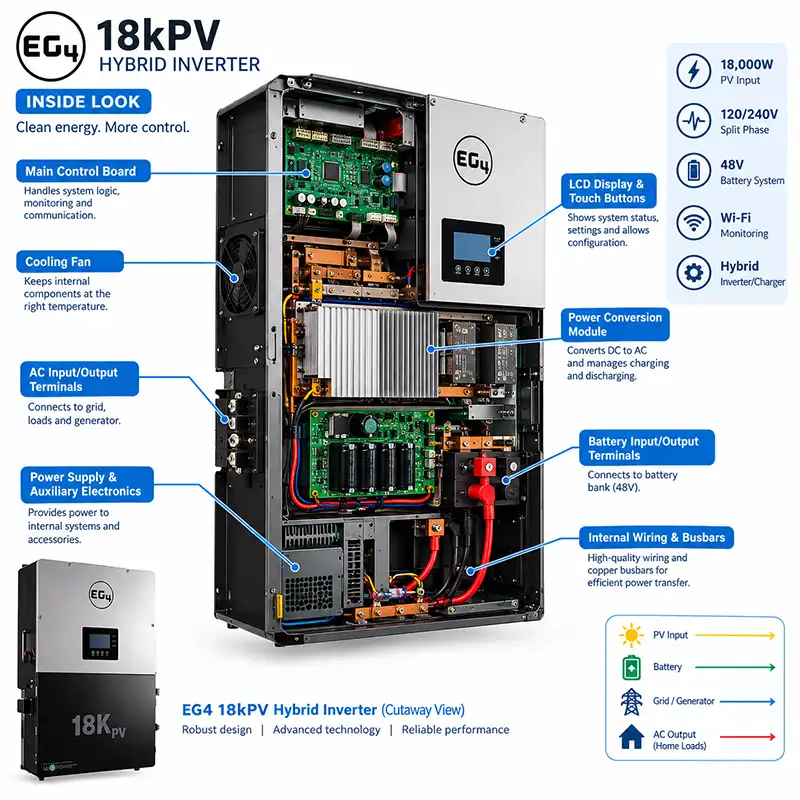

One of the standout features of the EG4-18KPV-12LV is its all-in-one functionality. It combines the power conversion capabilities of a solar inverter with battery management and grid interaction all within a single, streamlined package. The 48V system and 120/240V split-phase output make it compatible with standard North American residential electrical systems, offering flexibility for various home configurations.
Overall, the EG4 18k PV Hybrid Inverter presents a compelling solution for those seeking a high-capacity, durable, and integrated solar inverter. Its feature set, including its hybrid capabilities and durable outdoor rating, positions it as a strong contender for advanced solar installations where reliability and performance are paramount.
