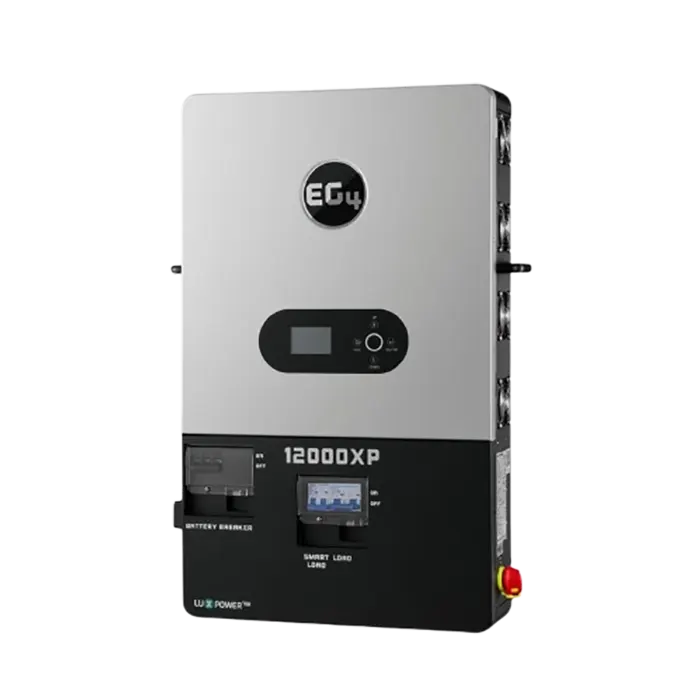

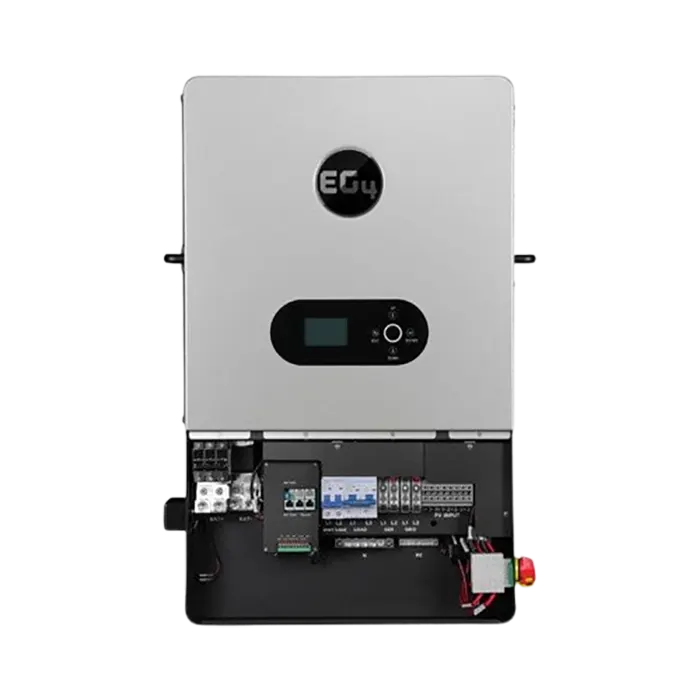

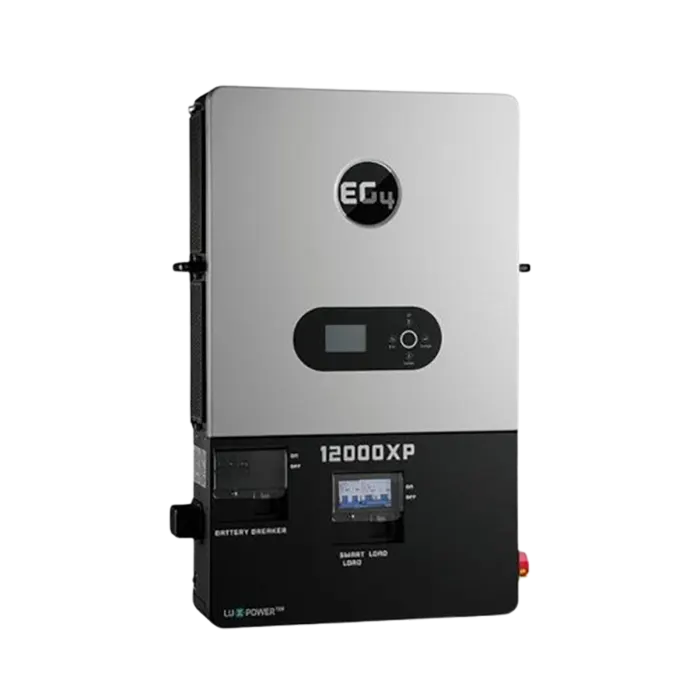

EG4 12K XP Off-Grid Inverter V2 | 48V Split Phase | 24kW PV Input | 12kW Power Output | 5-Year Warranty
The EG4 12K XP Off-Grid Inverter V2 presents a robust and impressive solution for those seeking reliable off-grid power. Boasting a substantial 24 kW PV input capacity and a strong 12 kW power output, this inverter is designed to handle significant solar arrays and power-demanding loads. Its 48V split-phase capability makes it a versatile choice for many residential and small commercial applications, ensuring compatibility with standard American electrical systems.
The EG4 12000XP V2 is designed for anyone seeking an efficient, all-in-one off-grid inverter with high power output, durable construction, and advanced communication features. Capable of running entirely off-grid or using grid electricity, this inverter is perfect for both residential and commercial setups.
EG4 12K XP Off-Grid Inverter V2 Features
- High Input Voltage (480VDC): Supports high-voltage input, reducing the need for extensive cabling and allowing for up to 24 kW PV input without a combiner box.
- Dual MPPT Design: Ensures optimal solar energy utilization, providing efficiency and stability under varying sunlight conditions.
- Plug-in Wi-Fi Capability: Monitor and adjust settings remotely using the EG4 app or Monitor system, adding convenience and control from any location.
- Closed-Loop Communication: Seamlessly integrates with EG4 48V batteries and other supported brands, offering enhanced system performance and safety.
- Rapid Shutdown Compliance: Equipped with NEC 690.12-ready rapid shutdown (RSD) capabilities for compliance and peace of mind in critical situations.
Performance Highlights
- 12kW Power Output with Surge Capacity up to 18kW: Delivers robust, consistent power with the ability to manage heavy-duty appliances and equipment in off-grid settings.
- Expandable Power Options: Parallel up to six units to reach a 72kW system, providing the flexibility to scale power output as needed.
- High Efficiency Rates: Enjoy an impressive 99% MPPT efficiency, maximizing energy harvest and minimizing energy loss.
EG4 12000XP Off-Grid Inverter Technical Specifications
- AC Input: 120/240 VAC | 50/60 Hz
- Max Continuous Output: 12 kW
- Surge Capacity: 18kW (5 seconds)
- Battery Compatibility: Lead-Acid/Lithium, with a recommended minimum of 400Ah per inverter
- Operating Temperature: 32°F – 113°F (0°C – 45°C)
- Protection Features: PV Reverse Polarity, Over-Voltage, and Surge Protection
- Warranty: 5 years
Ideal Applications
- Residential Off-Grid Living: Perfect for homes wanting to break free from grid reliance.
- Remote Work Sites and Cabins: Ensures a steady power supply, even in isolated locations.
- Commercial and Industrial Use: Robust enough to handle demanding off-grid requirements.
Installation and operation appear straightforward, with the V2 model likely building upon the success of its predecessor with potential improvements in efficiency and user interface. The inclusion of a 5-year warranty speaks to EG4’s confidence in the durability and performance of this unit, offering peace of mind for long-term off-grid investments. It’s a compelling option for anyone looking to establish or upgrade their independent power system.
Why Choose the EG4 12000XP V2?
With high output power, advanced safety features, and remote management capabilities, the EG4 12000XP off-grid inverter V2 provides an industry-leading solution that meets all your off-grid energy needs. Engineered for efficiency and durability, this inverter is your best choice for reliable and scalable power.
The EG4 12000XP V2 features upgraded hardware that increases its maximum combined power capability when operating with both solar PV and battery power simultaneously.
- Battery-Only Output: Up to 12 kW continuous
- Combined PV + Battery Output: Up to 15 kW (V2 hardware upgrade)
What does this mean?
When the inverter is supplying loads from battery power alone, its continuous output remains 12 kW. The V2 performance enhancement allows the inverter to deliver up to 15 kW only when sufficient solar PV is available and operating alongside the battery, giving the system additional capacity during daylight hours.
This upgrade helps support larger daytime loads without changing the inverter’s 12 kW continuous battery-only rating.
Overall, the EG4 12K XP Off-Grid Inverter V2 seems like a top-tier contender in the off-grid inverter market. Its high capacity, split-phase functionality, and manufacturer backing position it as a reliable and powerful heart for any solar-powered, off-grid setup.
