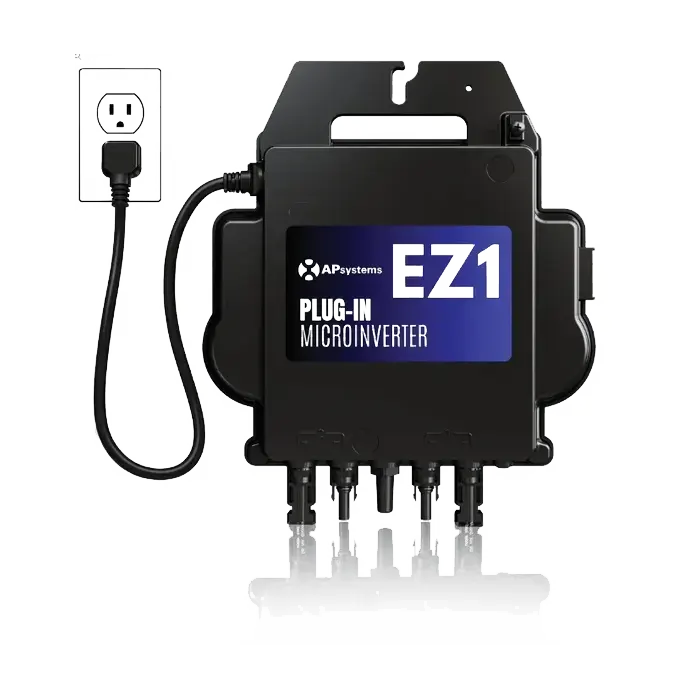

EZ1 Microinverter | DIY Balcony Solar Inverter – Handles up to 2 x Solar Panels – 900W AC Output
The EZ1 Microinverter is a compelling option for DIYers looking to tap into solar power on their balcony or smaller spaces. Its design is focused on ease of use, allowing you to connect up to two solar panels and benefit from a solid 900W AC output. This makes it a great step towards reducing your electricity bills and increasing your home’s energy independence without the complexities of larger systems.
The EZ1 series by APSystems opens the door to DIY solar for everyone, specifically designed for those who want to start saving on their electric bill without the complexity of traditional rooftop installations. Ideal for balcony, terrace, garden, or carport setups, this system allows both homeowners and tenants to produce clean energy directly where they live.
The EZ1 comes with all the core components you need to start generating power immediately. It’s a true DIY experience; this kit allows you to handle the entire installation yourself—simply mount the microinverter to a railing or wall, connect your panels, and plug directly into a standard wall socket.
Featuring two independent Maximum Power Point Tracking (MPPT) channels, meaning you can hook up to 2 x solar panels, and each solar panel operates separately. The EZ1 can output up to a max of 900W AC Output, so 2 x 450W solar panels would get you close to this.
EZ1 Microinverter Key Features
- 1 microinverter connects to 2 modules
- CSA Certified to UL3700 standards
- Max output power reaching 900 VA
- 2 input channels with independent MPPT
- Maximum reliability, Type 6
- High input current for larger modules
- Built-in Wi-Fi and Bluetooth
- Safety protection relay integrated
- Dedicated for balcony and DIY systems
EZ1 Microinverter Technical Specifications at a Glance
- Inverter Output Power: 900W Max Continuous AC Output Power (Can be adjusted in the app)
- Peak Efficiency: Industry-leading 97.3%
- DC Input Current: 18A x 2 to adapt to large panels
- System Type: Plug-in DIY Microinverter
- Standard Warranty: 10-20 years (subject to online Wi-Fi registration)
What’s Included in Your Kit:

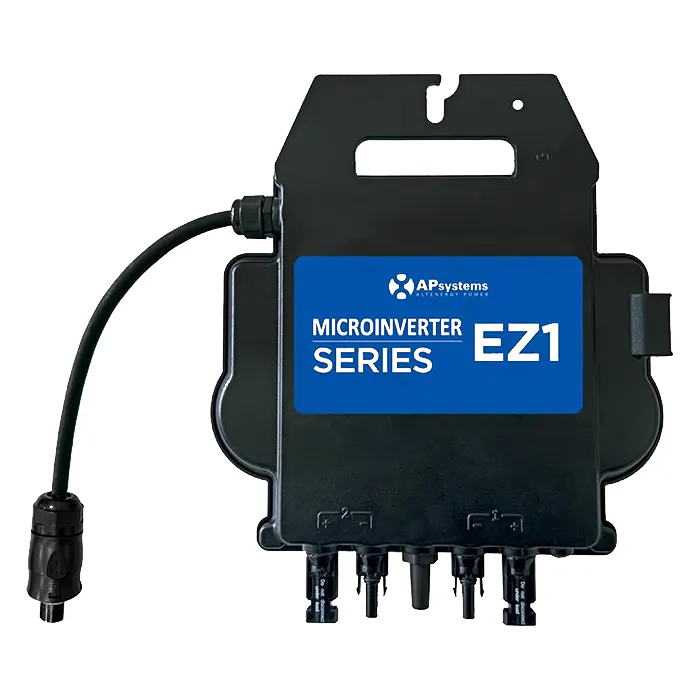

- EZ1-LV Microinverter: A high-efficiency, dual-channel unit purpose-built for today’s larger, more powerful solar panels.
- Smart Connectivity: Integrated Wi-Fi and Bluetooth for real-time monitoring and remote cloud tracking.

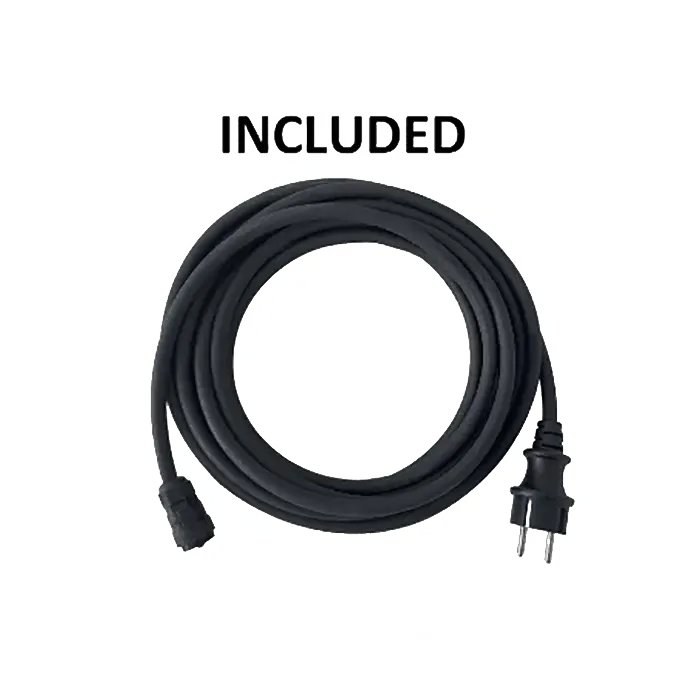

- Included US Power Cord: A specialized 5-meter AC cable that plugs directly into a standard 120V wall socket.
- EasyPower App: A dedicated tool for 1-minute system connection, individual panel monitoring, and online diagnosis.

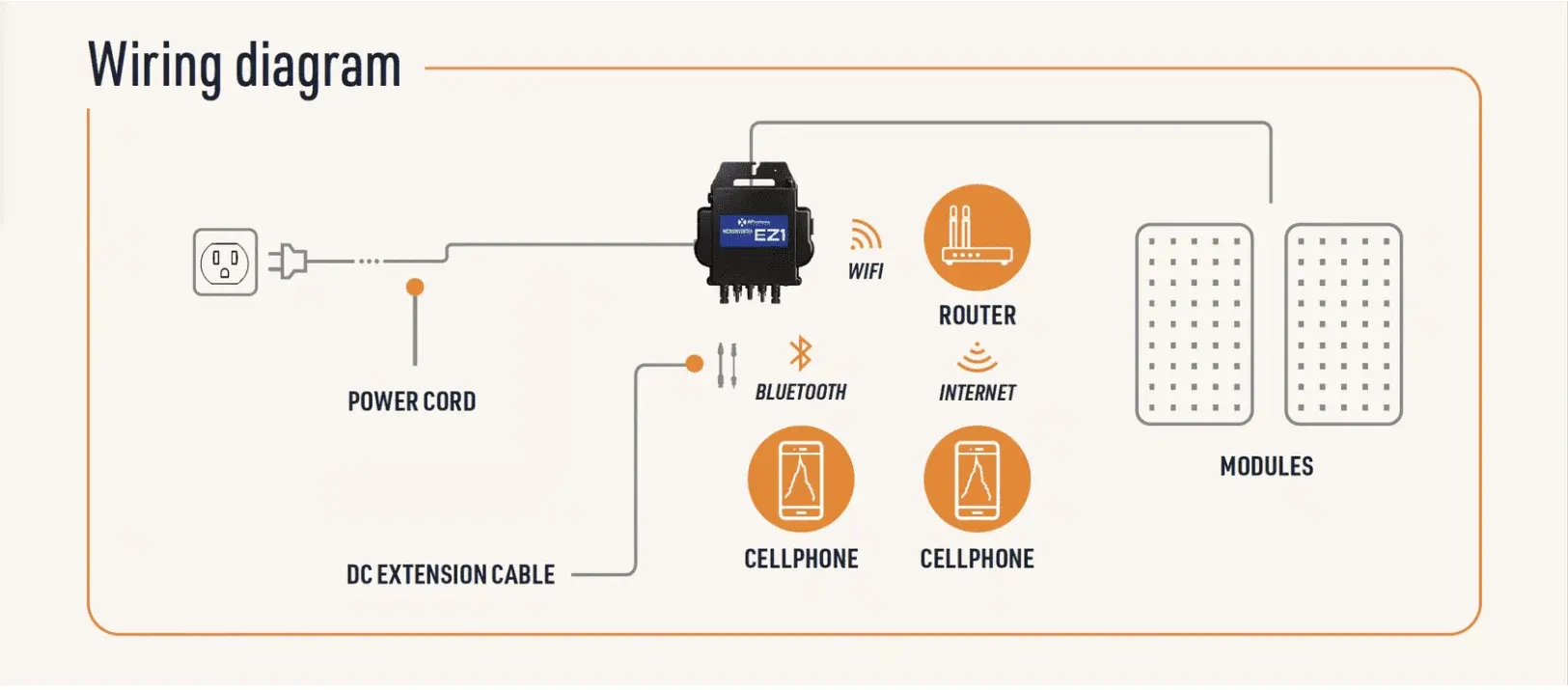

- Expert Setup Guides: Free system schematics and custom wiring diagrams included in your manual.
- Lifetime Support: Direct access to our team for the life of your system.
Typical Uses: What Can It Run?
- Energy Offset: Specifically engineered to “plug in” and immediately start reducing your daily electricity costs.
- Balcony & Terrace Solar: Perfect for small-scale installations where traditional rooftop solar isn’t an option
- Daily Household Loads: Offset the cost of running always-on appliances like refrigerators, home office setups, and standby electronics.
- Portable Power Support: Easily installed in gardens or garages to provide clean energy for outdoor tools or light commercial needs.
- Expanding Your Savings: The grid-forming semiconductor logic allows you to start with one unit and easily scale up as your energy needs grow.
Installation is generally straightforward, making it accessible even for those new to solar setups. You’ll appreciate the compact form factor and the direct connection to your solar panels, optimizing energy harvest right at the source. The 900W capacity is sufficient for powering a good portion of household appliances, offering a tangible impact on your energy consumption.
Overall, the EZ1 Microinverter offers a practical and cost-effective entry into solar energy for smaller living spaces. If you’re seeking a user-friendly, efficient, and relatively simple solution to start generating your own power, this microinverter is definitely worth considering.
Order Today
All orders are shipped using our innovative packaging and pallets, designed for safe, secure delivery to your door, and are backed by our free lifetime support. Order today and secure your energy independence once and for all.
