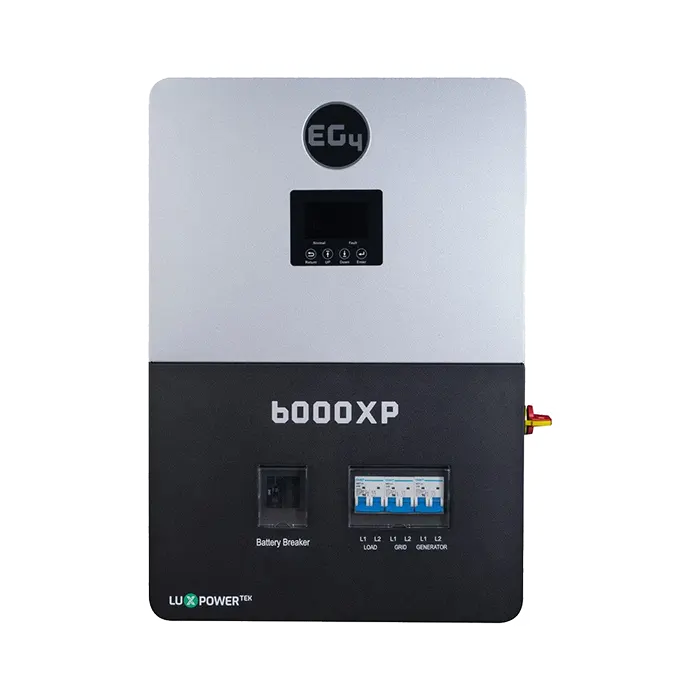

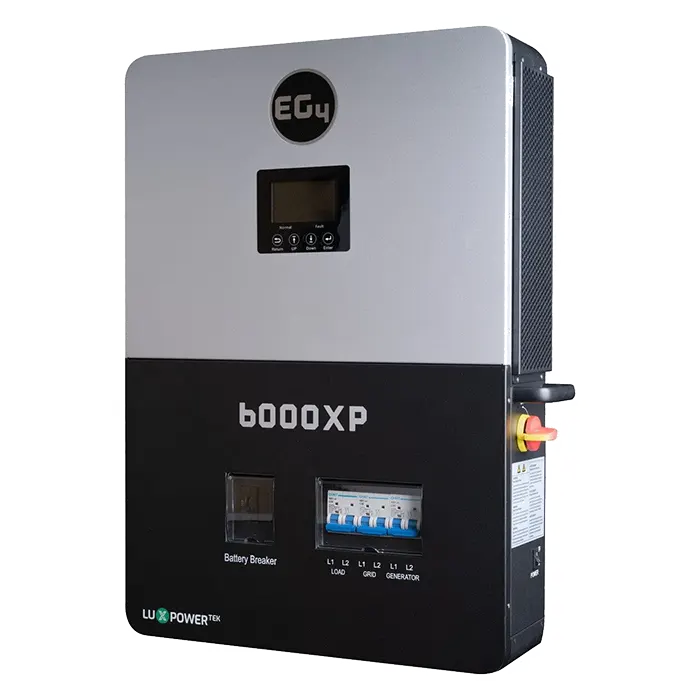

EG4 6K XP Off-Grid Inverter | 8,000W PV Input

EG4 6K XP Off-Grid Inverter | 8,000W PV Input | 6,000W Output | 48V 120/240V Split Phase | All-In-One Solar Inverter

The EG4 6K XP Off-Grid Inverter is a 48V split-phase, off-grid inverter/charger capable of utilizing 8 kW of PV and efficiently outputting 6 kW of power while also charging your battery bank. Parallel up to 16 units for 96 kW of output power and control multiple stations and units using the new EG4 monitoring software.

The EG4 6K XP represents a compelling all-in-one off-grid inverter, designed to simplify solar power setups. With its robust 8,000W PV input capacity and a substantial 6,000W output, it’s well-equipped to handle significant energy demands for homes, RVs, or remote locations. The 48V system and 120/240V split-phase capability make it versatile for powering both standard and larger appliances, offering a user-friendly approach to managing off-grid electricity.

EG4 6K XP Off-Grid Inverter Features

• Applicable for purely off-grid inverter/backup power situations.
• Integrated with 2 MPPT solar charge controllers with maximum PV input of 480V, with an optimal range of 120VDC-385VDC.
• Rated for 6 kW output, with a power factor of 1.
• Able to run without a battery in off-grid mode.
• Able to utilize generators with dedicated generator terminals.
• Supports paralleling for up to 16 inverters.
• Supports CAN/RS485 for lithium battery communications.
• Features remote monitoring and firmware updates via mobile phone app or monitoring system website.
• Transformerless Split-Phase Design
• Remote Adjustment via EG4® Software
• 5-Year Warranty

• All-In-One Solar Inverter
  The EG4 6000XP Inverter is capable of running entirely off-grid or with grid input for supplemental charging and output power.
• 480 VDC Max
  The extra high voltage enables lower cable sizing for the 2 MPPTs and a maximum recommended PV input of 8,000W, eliminating the need for a combiner box.

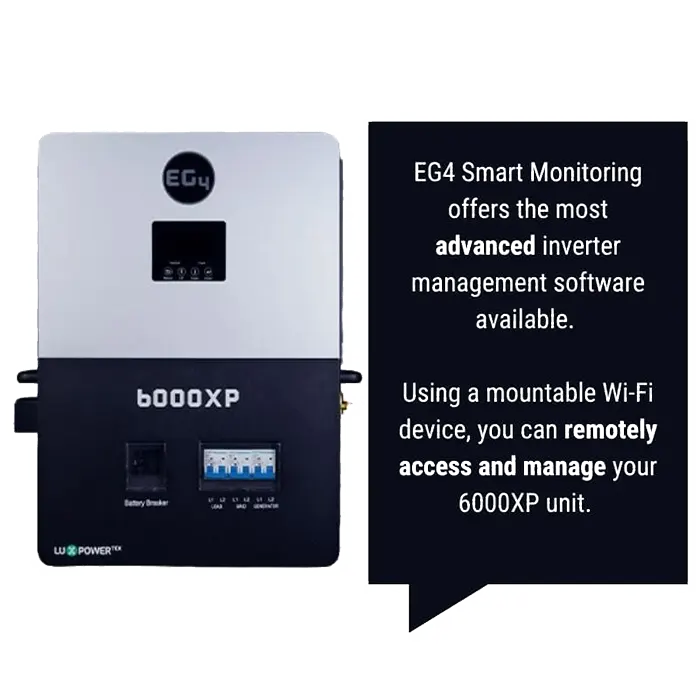

• Mountable Wi-Fi Device
  Enables wireless connection between our new monitoring platform and the 6000XP through the app or online website.
• Closed-Loop Communications
  Able to communicate with EG4® 48V batteries and other battery brands. *A firmware update is required for closed-loop communications with LifePower4 batteries.
• High Frequency, Split-Phase Output
  Allows for 120/240V service application with only a single unit.

EG4 6000XP Inverter Specifications

1. AC Input Data

• Nominal AC Voltage: 120-240 VAC
• Frequency 50/60 Hz
• Max. Continuous AC Current: 37.5A @ 240VAC
• Max. AC Input Power: 9000 W

2. AC Grid Output Data

• Max. Continuous Output Current 25A
• AC Bypass (Grid) 60A
• Output Voltage: 120/240 VAC
• Nominal Power Output: 6000 W
• Output Frequency: 50/60 Hz
• Power Factor: 0.99 at full load
• Reactive Power Adjustment Range (-0.8) – (+0.8), leading adjustable

3. Backup/UPS AC Output Data

• Rated Output Current @ 240V: 25A
• AC Bypass (Generator) 60A
• Rated Output Power 6000W
• Max Cont. Line Wattage 3000W
• Surge Capacity: 12,000 W for ~25 seconds
• Operating Frequency: 50/60 Hz
• THD (V) <3%
• Switching Time <15 ms @ Single / <30 ms @ Parallel

4. PV Input Data

• Number of MPPTs: 2
• Inputs per MPPT 1
• Max. Usable Input Current 17/17A
• Max. Short Circuit Input Current: 25/25 A
• DC Input Voltage Range: 100-480 VDC
• Unit Startup Voltage: 100 VDC ± 10 VDC
• MPP Operating Voltage Range: 120-385 VDC
• Nominal MPPT Voltage: 320 VDC
• Maximum Utilized Solar Power: 8000 W (4000 W per MPPT)
• Recommended Maximum Solar Input: 10,000 W

5. Efficiency

• MPPT Efficiency: 99%
• Battery Charging Efficiency: 93%
• Battery Discharging Efficiency: 93%
• Idle Consumption (Standby mode) w/ PV w/ Battery w/ AC < 30 W ** < 50 W 10 W

6. Battery Data

• Type: Lead-acid/Lithium
• Max. Charge/Discharge Current 140A
• Nominal Voltage 48 VDC
• Voltage Range 46.4-60 VDC (Lithium); 38.4-60 VDC (Lead-Acid)
• Rec. Battery Capacity per Inverter: > 200 Ah

7. EG4 6000XP Inverter General Data

• Integrated Disconnect Yes
• DC Switch Rating for each MPPT: Yes
• Dimensions 18×25.5×5.25 in (457×648×132 mm)
• Weight: 52.9 lbs (24 kg)
• Cooling Concept Fan
• Topology: TL (Transformerless)
• Relative Humidity 5-95%
• Altitude: < 6561 ft
• Operating Temperature Range: 32 – 113°F (0 – 45°C)
• Storage Temperature Range: 5 – 140°F (-15 – 60°C)
• Noise Emission (typical): <58 dB
• Display: LCD + LED
• Communication Interface RS485/Wi-Fi/CAN
• Standard Warranty: 5-year standard warranty

What’s Included With Your Order?

• 1 x 6000 XP Inverter
• 1 x User Manual
• 4 x Expansion Screws and Tubes
• 1 x Wi-Fi Module
• 2 x Cross Head Screws M6 x 16
• 4 x Cross Head Screws M3 x 10
• 1 x Mounting Template
• 1 x Inverter to Battery Comm. Cable (78 in. length)
• 1 x Inverter to Inverter Comm. Cable (78 in. length)
• Free Shipping
• Lifetime Customer Support (Email, Live Chat & Phone)

For DIYers and those looking to establish or upgrade their off-grid power systems, the EG4 6K XP offers a well-rounded and powerful choice. Its all-in-one design minimizes complexity, while its performance metrics suggest reliability and capacity for demanding applications. The split-phase output is a crucial feature for many residential needs, ensuring broad compatibility with a wide range of electrical devices.
